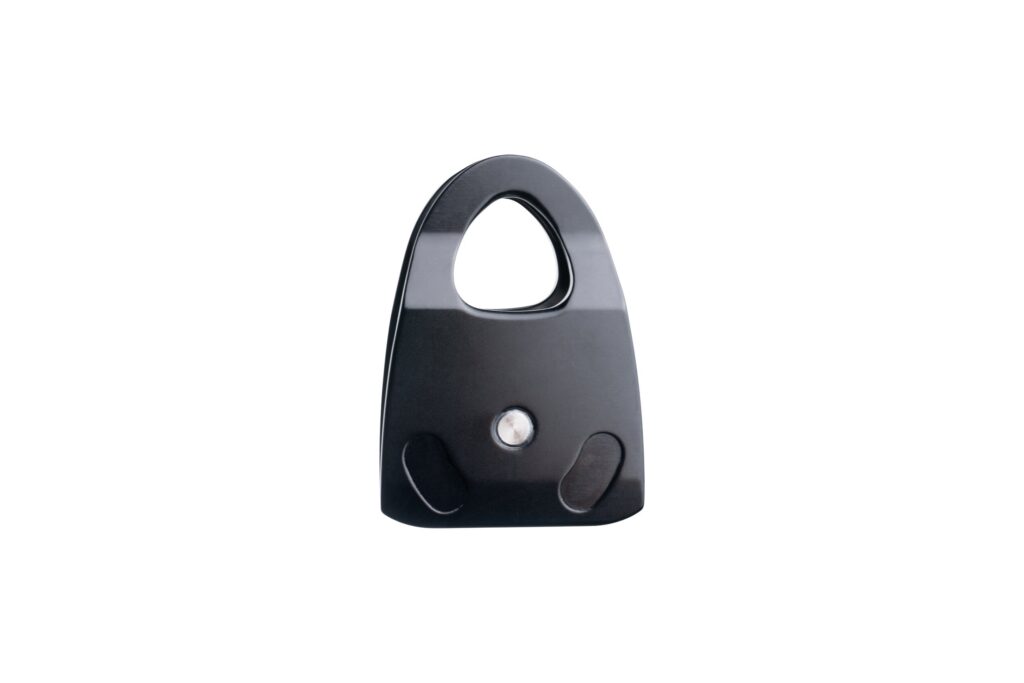

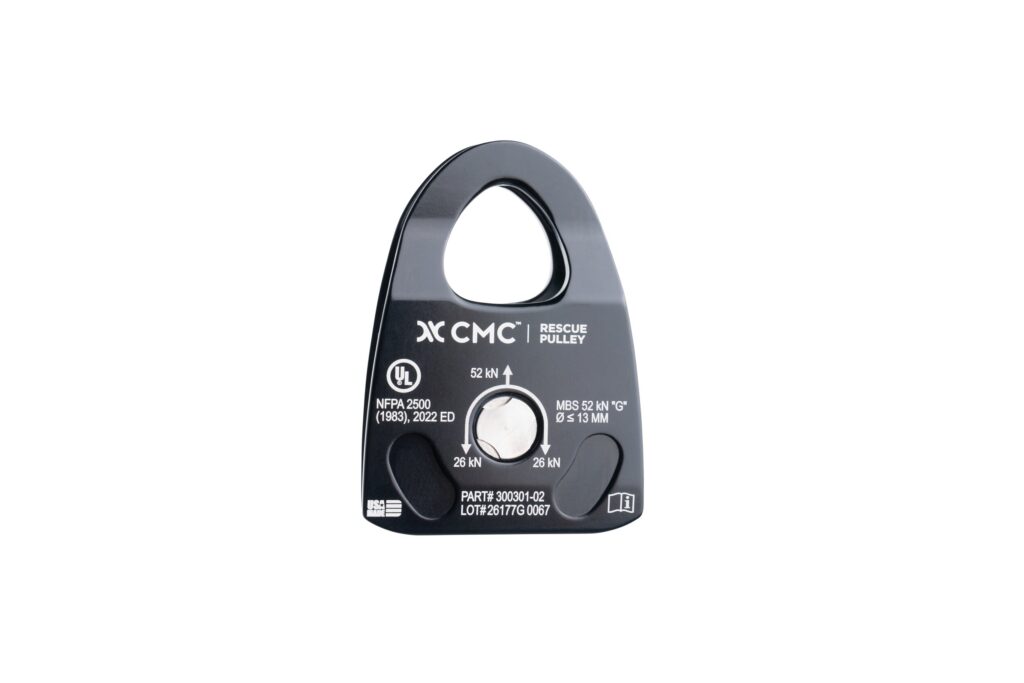

This lightweight, full-strength, Prusik-minding pulley is ideal for mountain rescue, swiftwater, or other technical teams where equipment weight is a significant consideration. By machining the side plates, the thickness of the metal can be varied to maximize the strength-to-weight ratio, a process that cannot be done with traditional bent metal side plates. Sealed ball bearings provide high efficiency and aluminum side plates protect the rope. An extremely low-profile stainless steel axle assembly reduces snagging on rocks, roots, and uneven surfaces. Designed for lifeline up to 1/2 inch (13 mm) in diameter. Available in Single or Double versions.
Do not load a single side only of a double sheave pulley.
Option | Item | TYPE | WEIGHT | SHEAVE TREAD SIZE | COLOR | NFPA RATING | 3 SIGMA MBS | Price |
---|---|---|---|---|---|---|---|---|

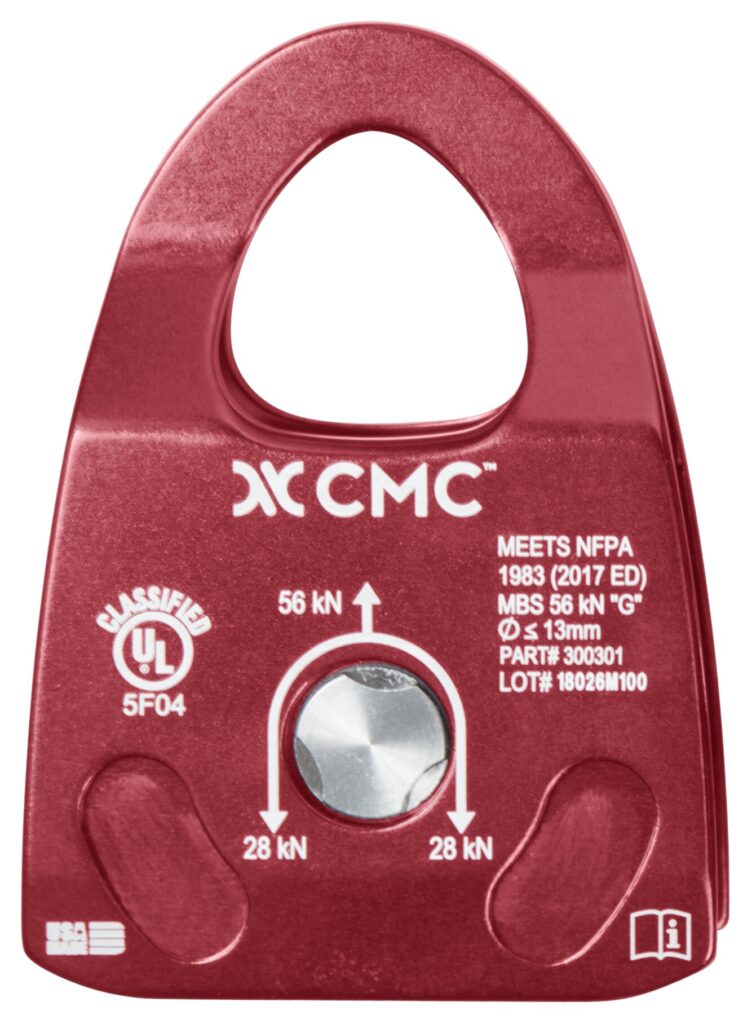

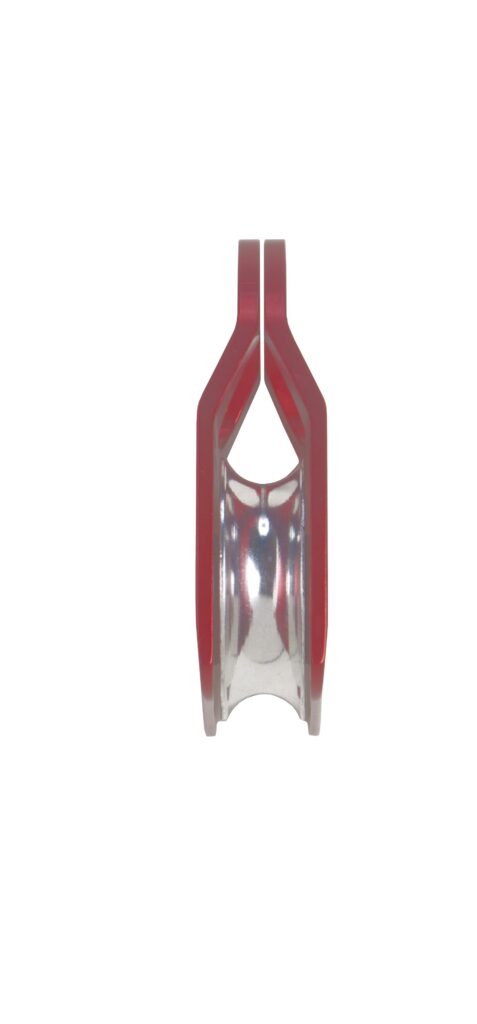

Single Rescue Pulley | 300301 | SINGLE SHEAVE | 145 G (5.1 OZ) | 38 X 13 MM (1.5 X .5 IN) | RED | GENERAL USE | 52 KN (11,690 LBF) | $77 |

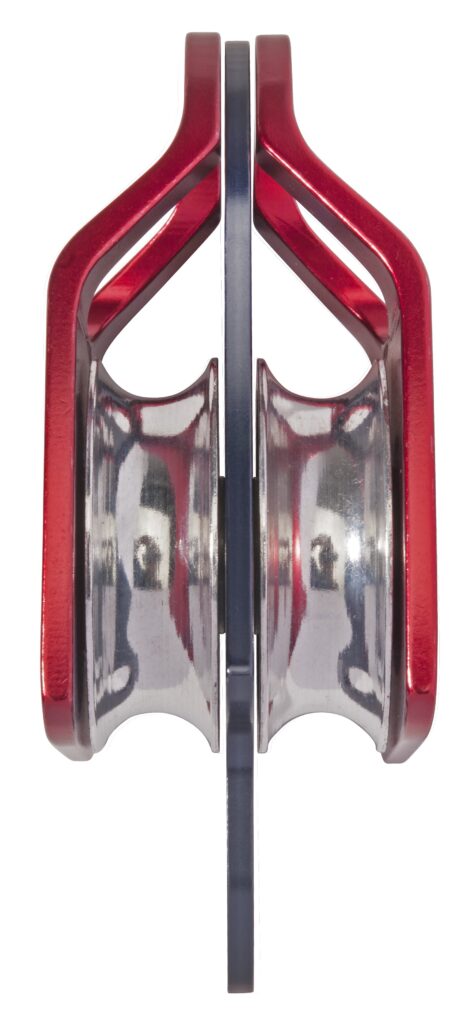

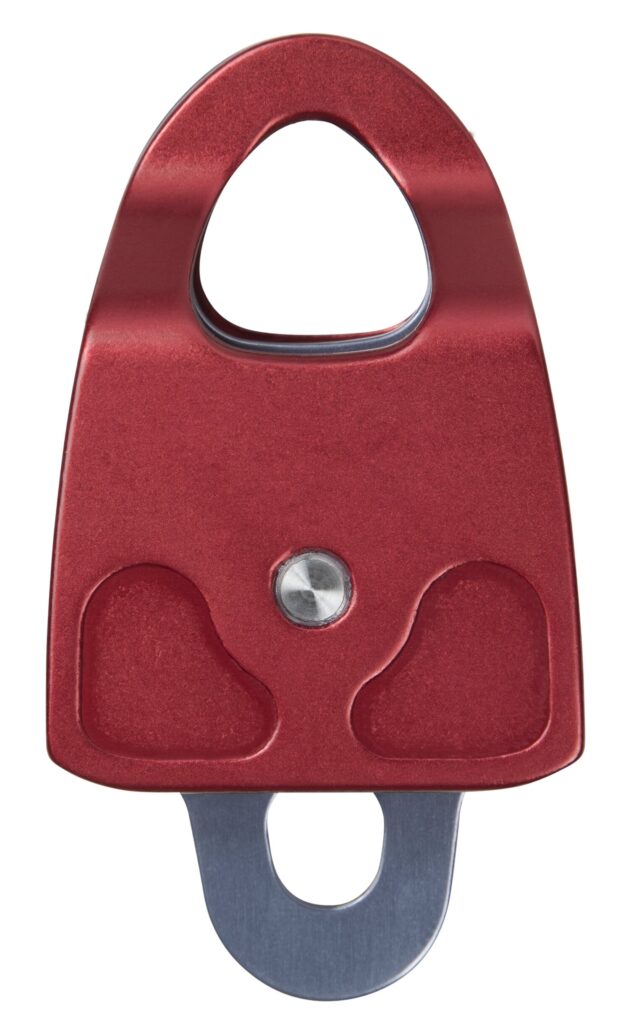

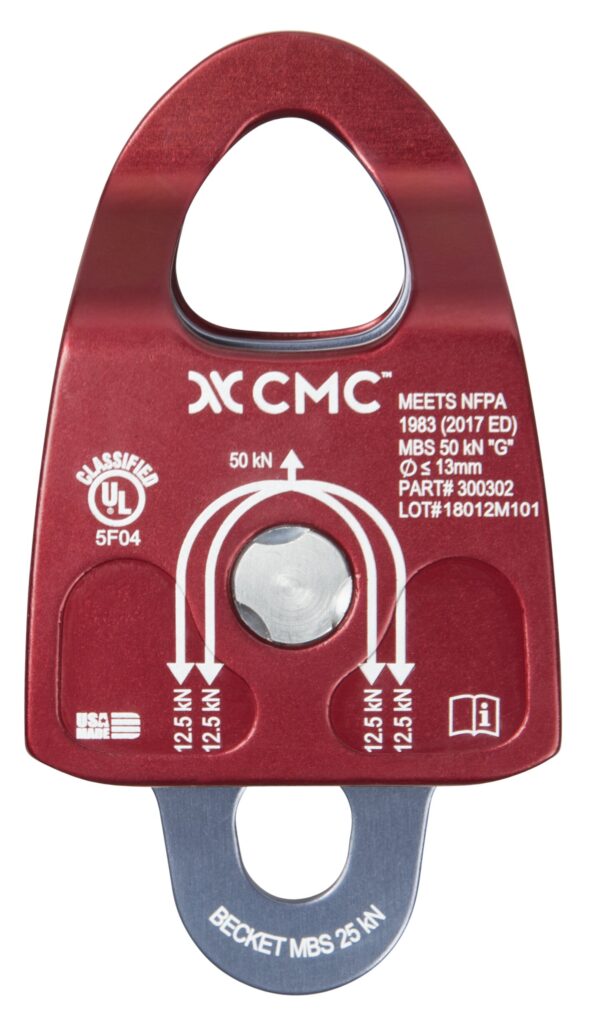

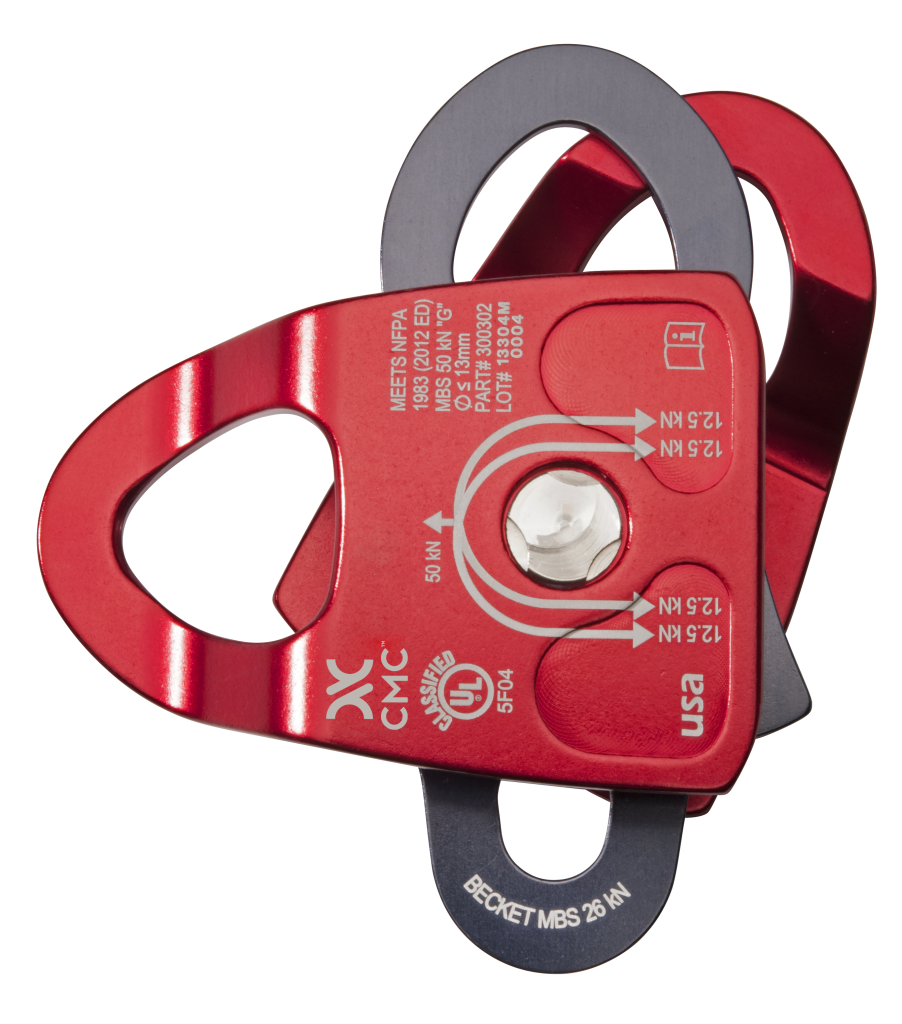

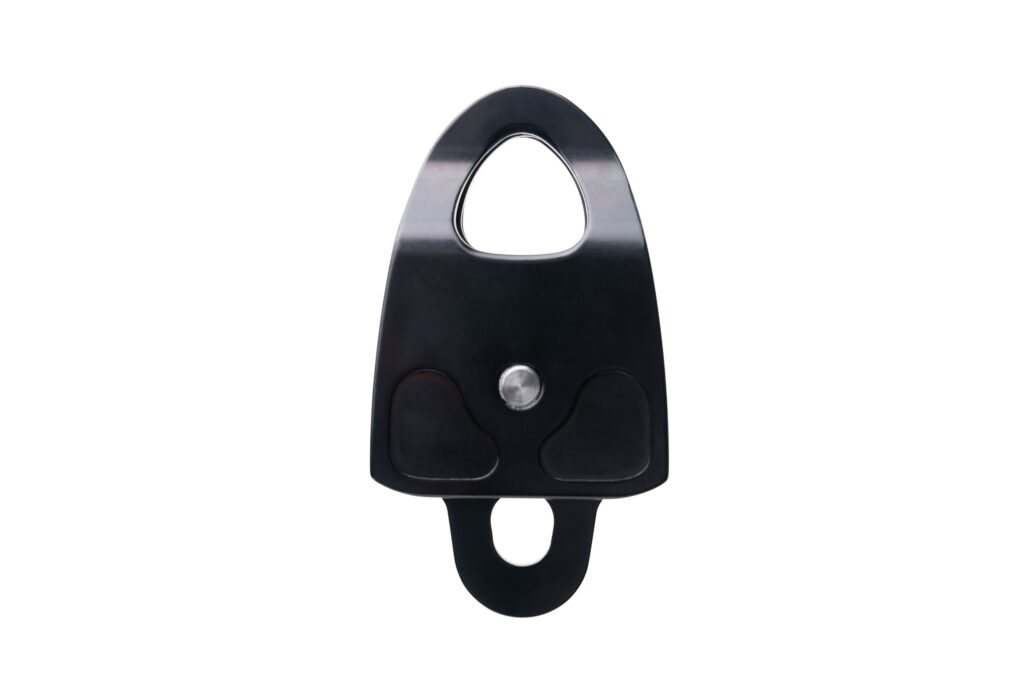

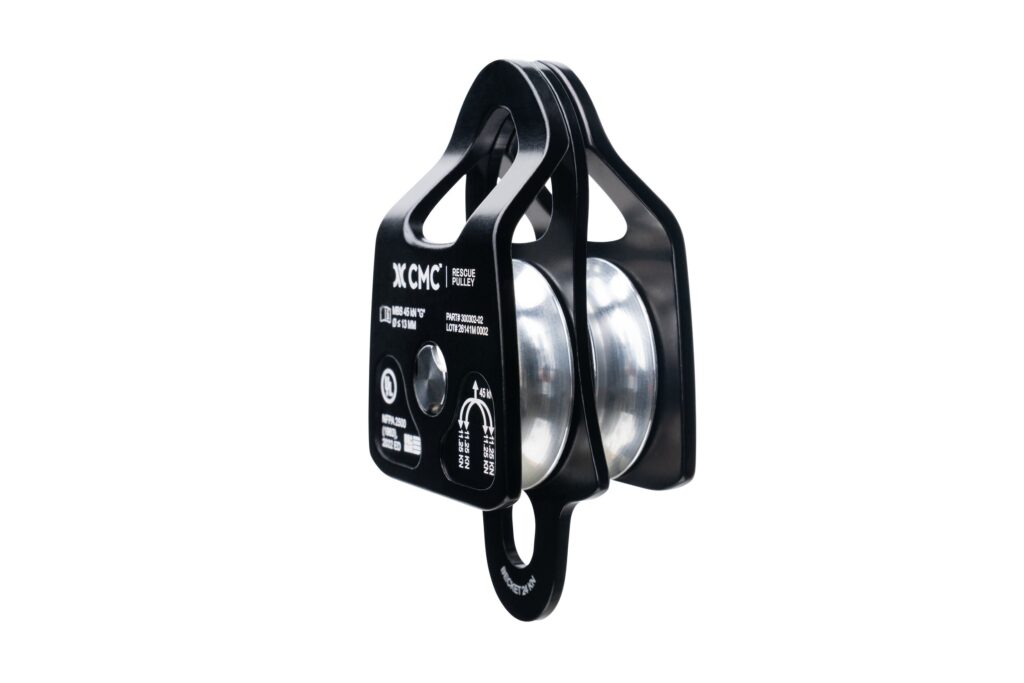

Double Rescue Pulley | 300302 | DOUBLE SHEAVE | 249 G (8.8 OZ) | 38 X 13 MM (1.5 X .5 IN) | RED | GENERAL USE | 45 KN (10,116 LBF) | $127 |
