CMC PROSWIVEL™ PULLEYS

CMC PROSWIVEL™ PULLEYS
CMC ProSwivel Pulleys are all certified to NFPA standards. Please note we are currently phasing-in dual certified pulleys that are classified to both NFPA and EN standards. As these parts become available, we will update the product photos and the ce… Learn More
Learn More

CMC ProSwivel Pulleys are all certified to NFPA standards. Please note we are currently phasing-in dual certified pulleys that are classified to both NFPA and EN standards. As these parts become available, we will update the product photos and the certification table below. Please contact Customer Support if you have any questions.

CMC ProSwivel Pulleys combine a swivel and pulley into a single device with a moving sideplate that allows rope loading/unloading while attached to the anchor. Available in sheave sizes from 1.1″ radius up to 2.6″, these pulleys are an excellent option for mechanical advantage systems for hauling and ascending, and they work well in combination with high anchors, tripods, and redirects.

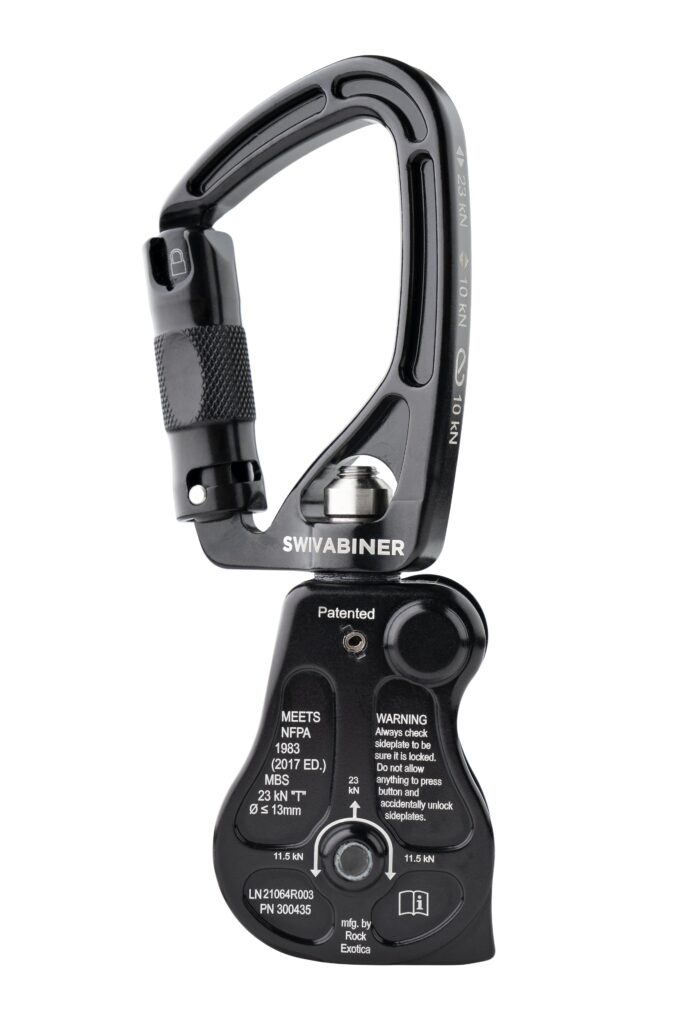

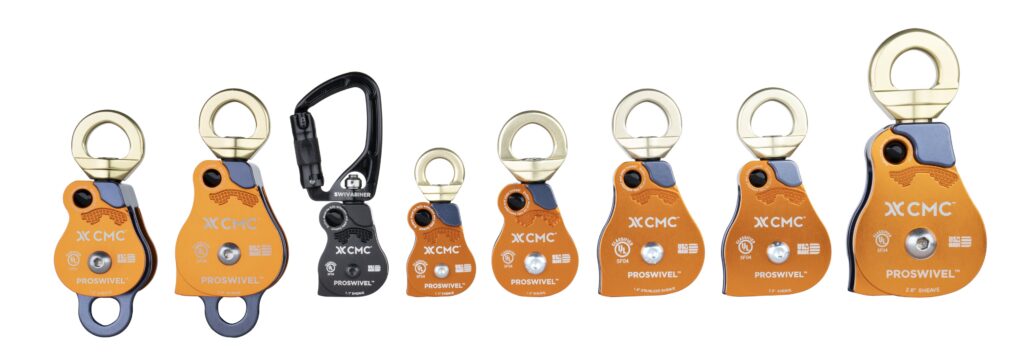

Teaming up with Rock Exotica, CMC now offers more swivel pulleys certified to NFPA and EN standards. Our expanded ProSwivel line includes eight pulleys to choose from. Select the best ProSwivel Pulley for the job, going bigger for more efficiency or smaller when weight is critical. For more swivel pulley options, check out our single and double SwivaBiners.  Expanding on the original, patented swivel pulley line by Rock Exotica, the CMC ProSwivel Pulleys are time-tested, made in the USA, and brought to you by two companies committed to quality and service.

New Additions:

  • 2.0” PMP Single Pulley – G-Rated, prusik minding, and up to 3% more efficient than 1.5″
  • 2.0″ PMP Double Pulley – G-Rated, prusik minding, and has integrated becket for MA
  • 1.5” Single Pulley – G-Rated and lightweight with an aluminum sheave pulley
  • 1.1″ Double Pulley – T-Rated, prusik minding, compact, and lightweight

Features:

  • New models certified to NFPA standards including a more efficient 2” option
  • Combined swivel & pulley reduces system length, allowing more travel
  • Pivoting sideplate allows rope loading without disconnecting from anchor
  • Double-action detent button prevents accidental opening of the sideplate
  • Sheave is mounted on sealed ball bearings for maximum efficiency
  • Rotating swivel aligns rope with the direction of pull
  • Swivel can be secured using rope, web, or carabiners
  • Ergonomic design for anchoring and loading with one hand
  • CNC machined for optimal strength & weight
  • Prusik minding options facilitate progress capture

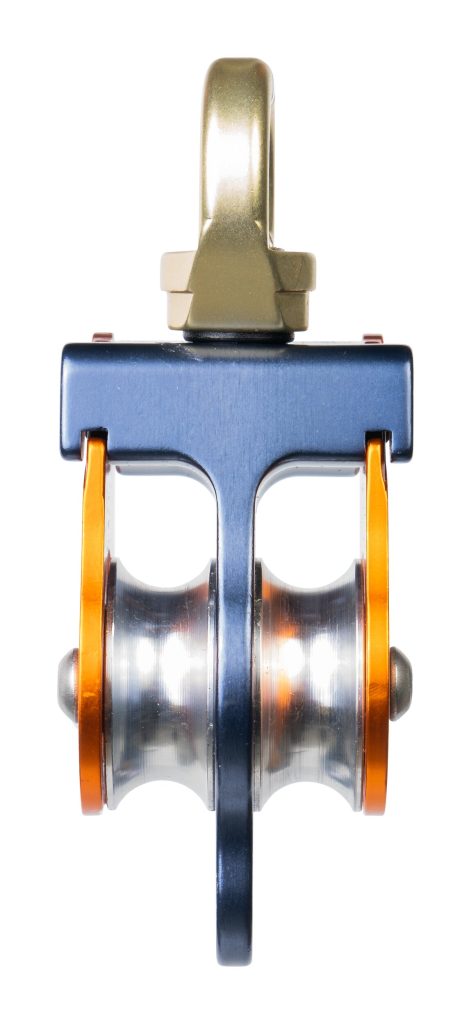

  • Double sheave pulleys equipped with integrated becket
  • Compatible with rope up to 13 mm (1/2 in)
  • 1.5″ PMP SS Pulley is compatible with rope or wire cable
  • Ideal for rescue, work at height, and tree care
  • Patented, USA Made, time-tested, and proven

CMC has issued a Product Recall and Safety Notice for certain lot numbers of ProSwivel Pulleys. We have corrected this issue for current and future ProSwivel Pulley production.

OptionItemPRODUCT WEIGHTPULLEY TYPESHEAVE MATERIALHEIGHT X WIDTHPULLEY COLORNFPA RATINGEN STANDARDS3 SIGMA MBSPrice

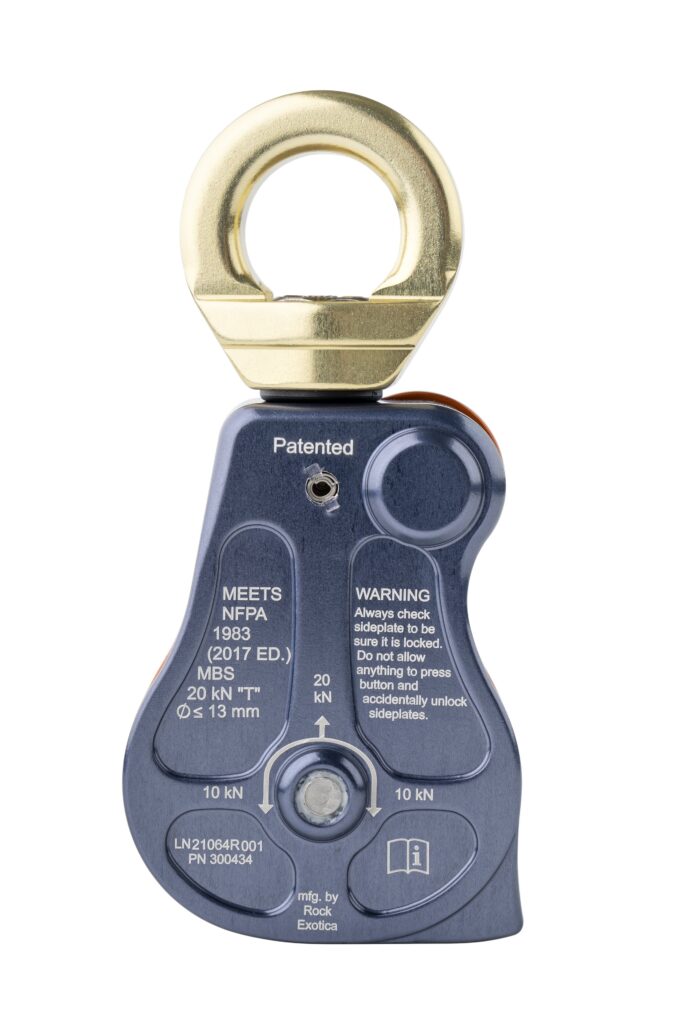

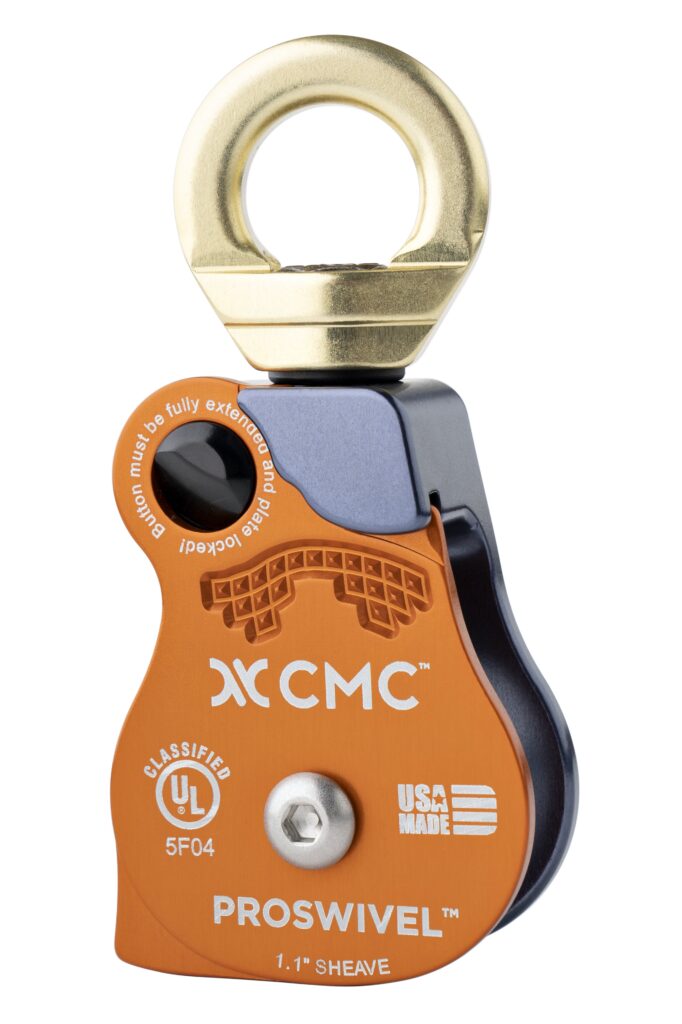

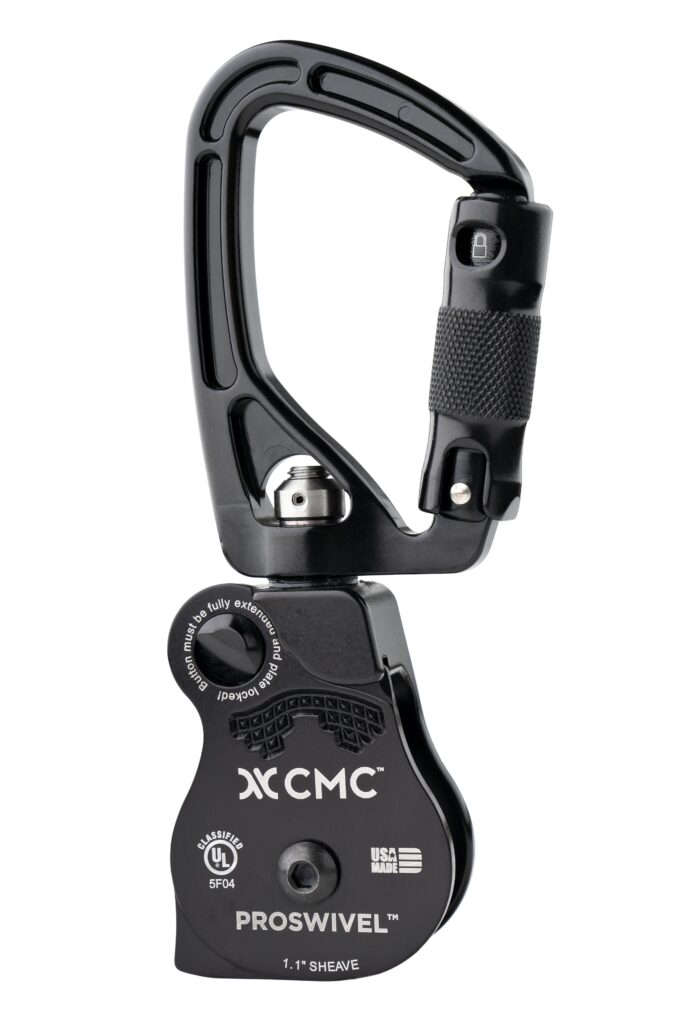

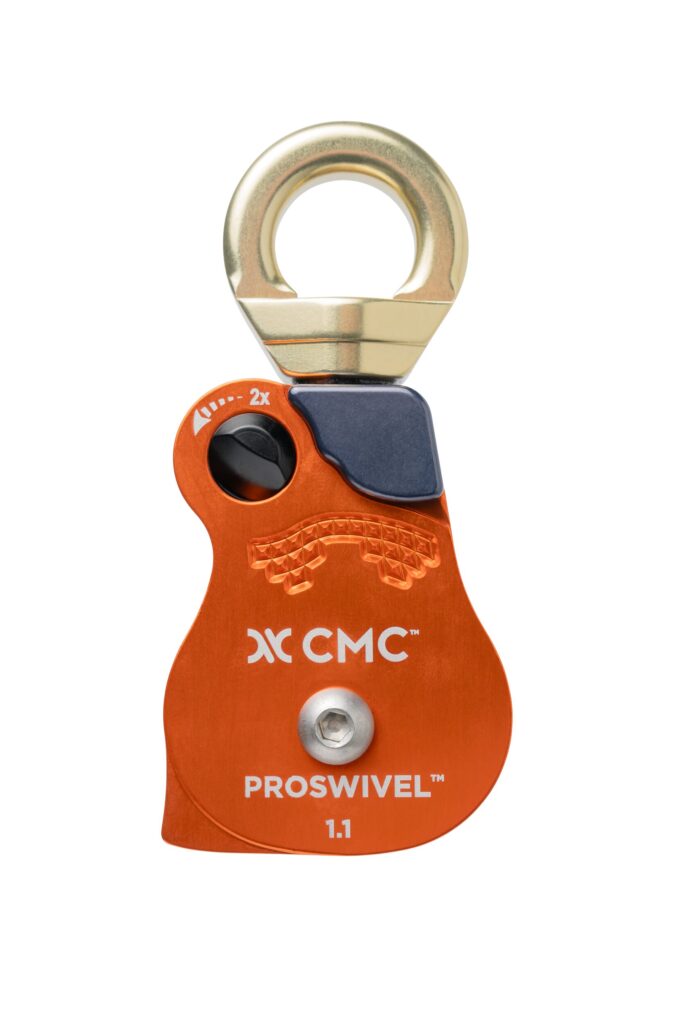

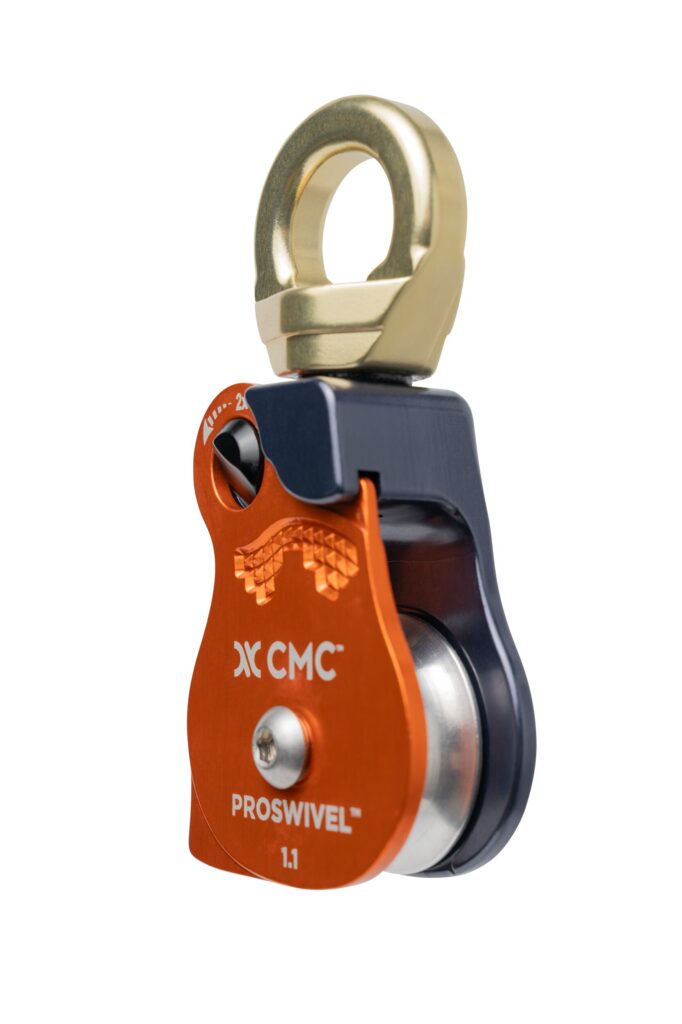

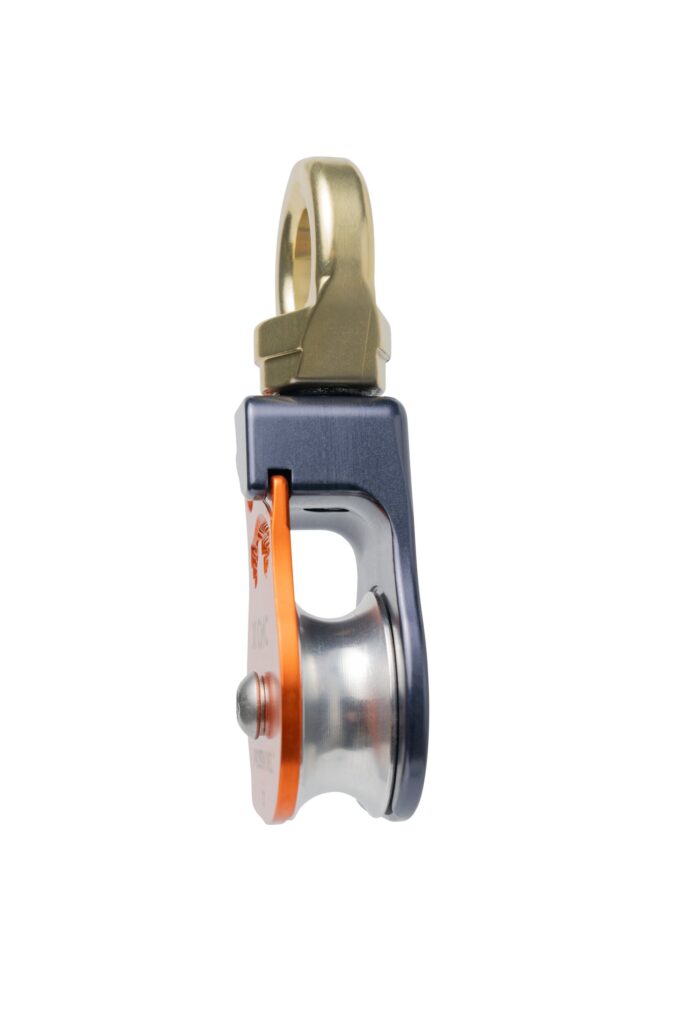

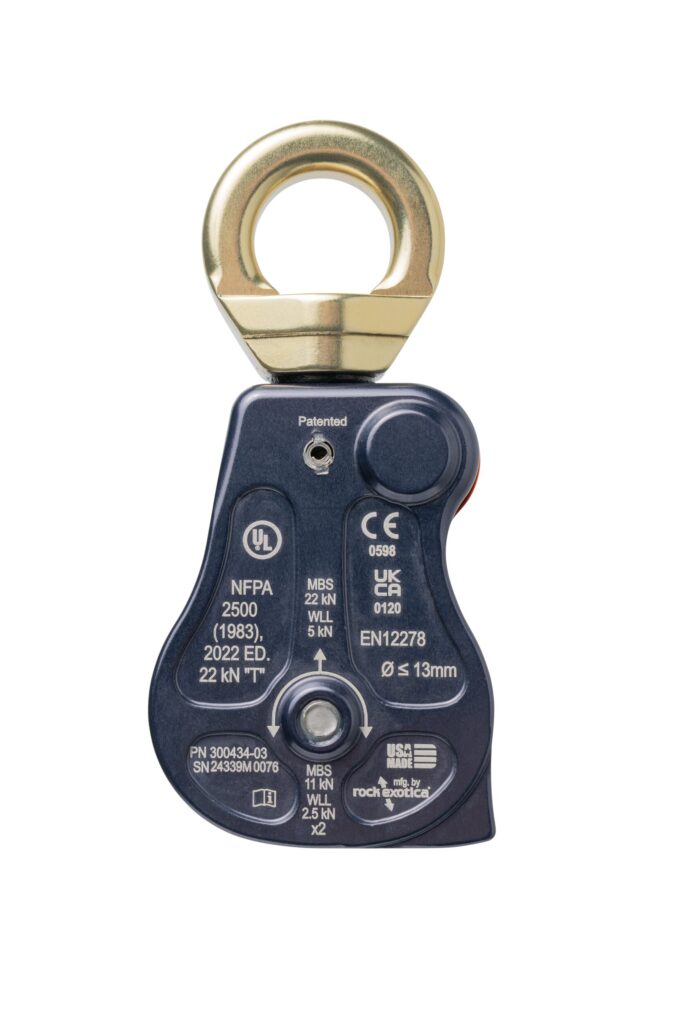

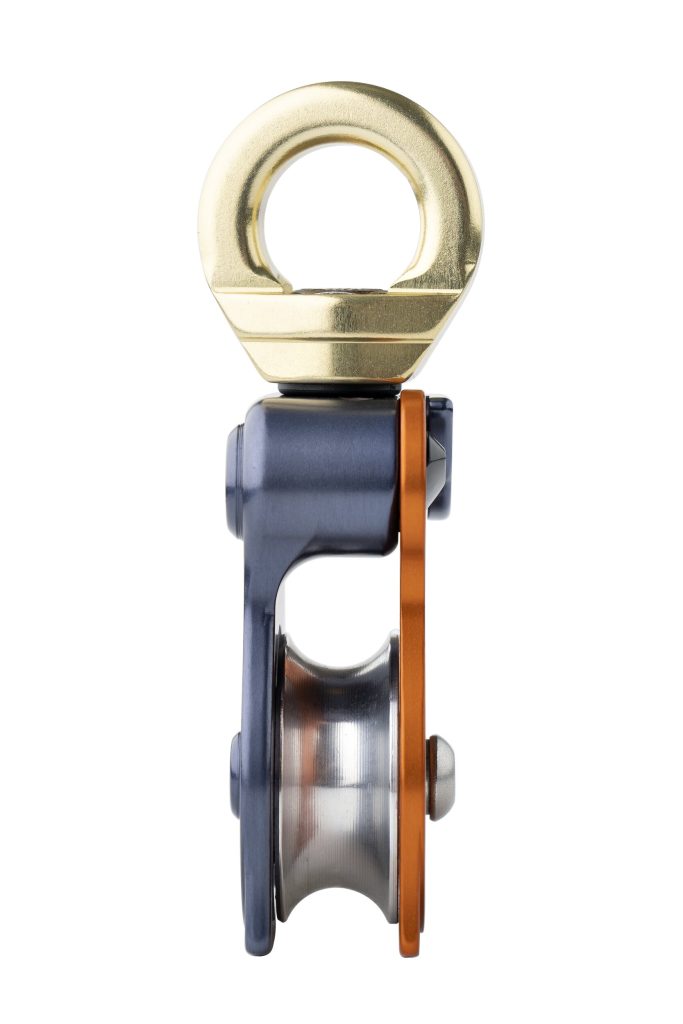

Option1.1” PMP Single Swivel PulleyItem300434PRODUCT WEIGHT 147 G (5.2 OZ)PULLEY TYPE SINGLE SHEAVESHEAVE MATERIAL ALUMINUMHEIGHT X WIDTH 112 X 51 MM (4.4 X 2.0 IN)PULLEY COLOR BRONZE / SLATENFPA RATING TECHNICAL USEEN STANDARDS N/A3 SIGMA MBS 22 KN (4,946 LBF)Price$99

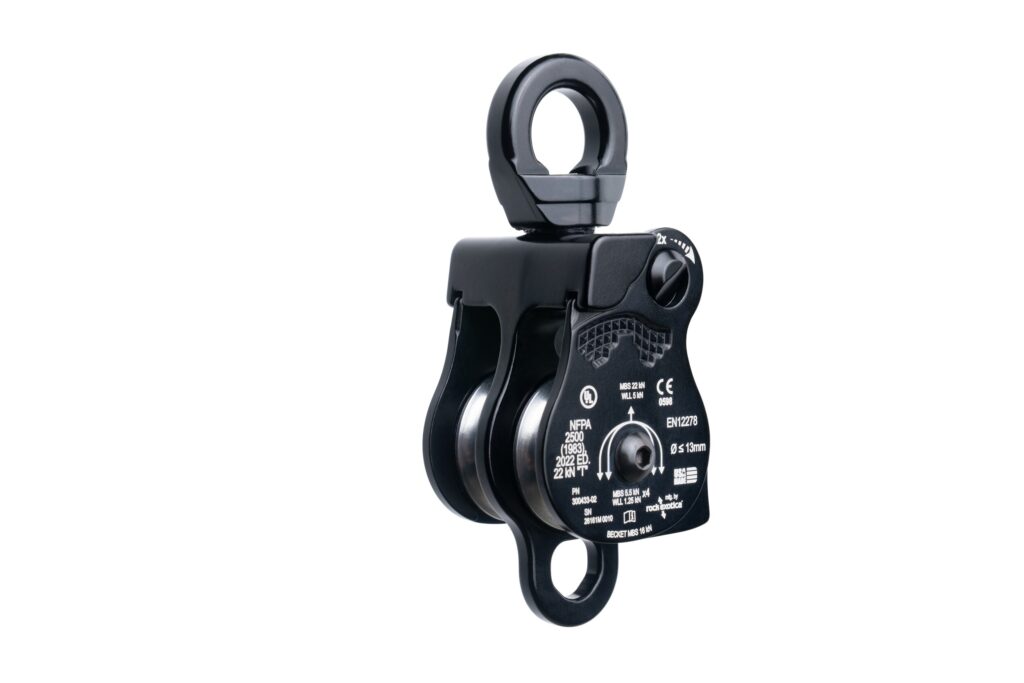

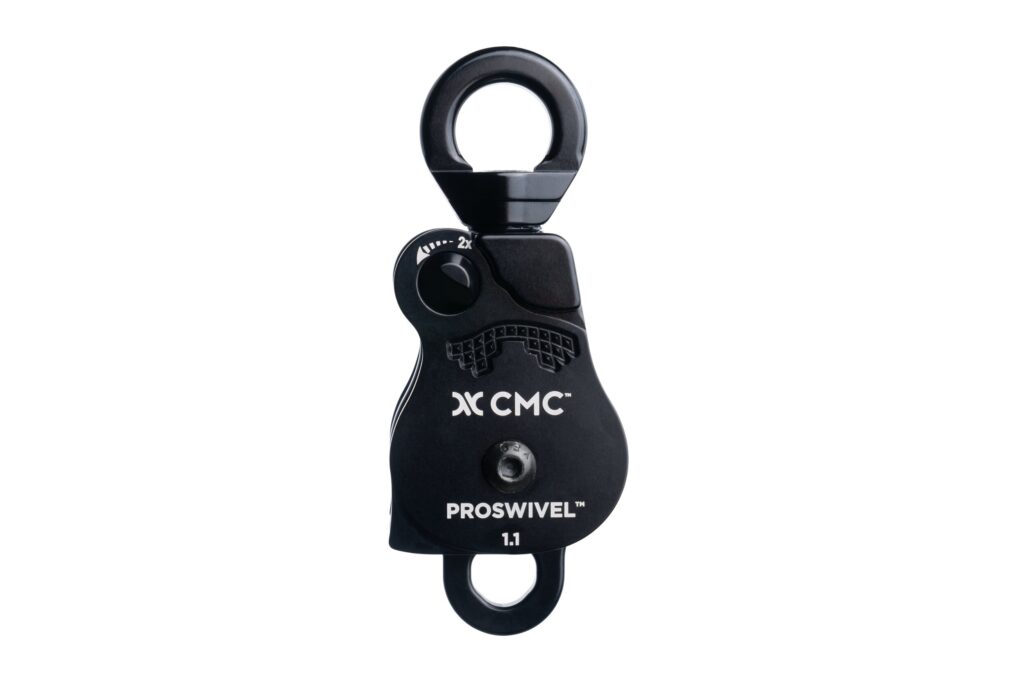

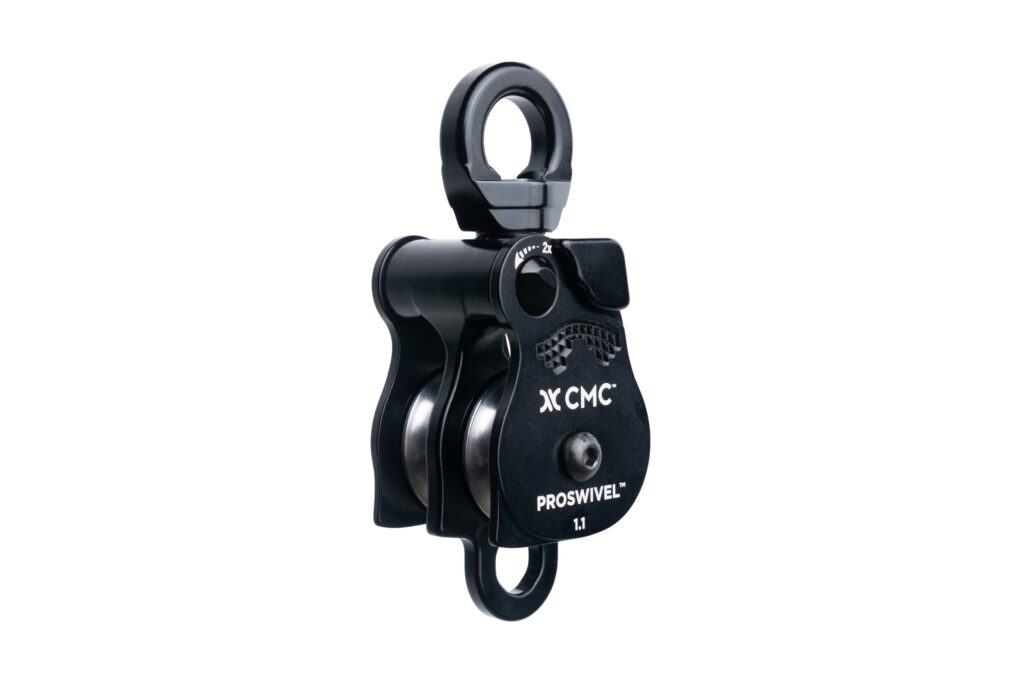

Option1.1” PMP Double Swivel PulleyItem300433PRODUCT WEIGHT 245 G (7 OZ)PULLEY TYPE DOUBLE SHEAVESHEAVE MATERIAL ALUMINUMHEIGHT X WIDTH 112 X 51 MM (4.4 X 2.0 IN)PULLEY COLOR BRONZE / SLATENFPA RATING TECHNICAL USEEN STANDARDS N/A3 SIGMA MBS 22 KN (4,946 LBF)Price$137

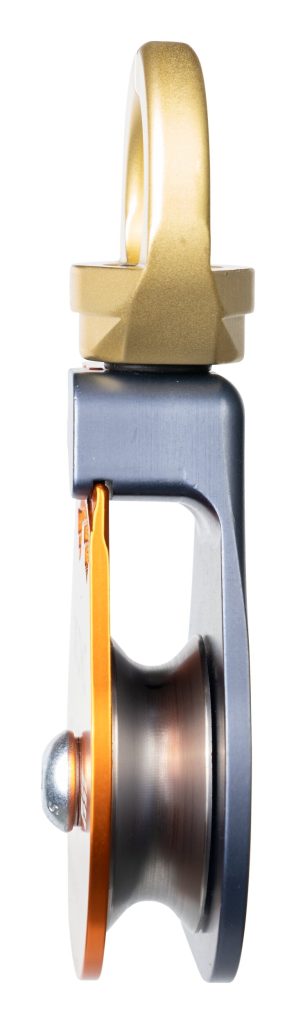

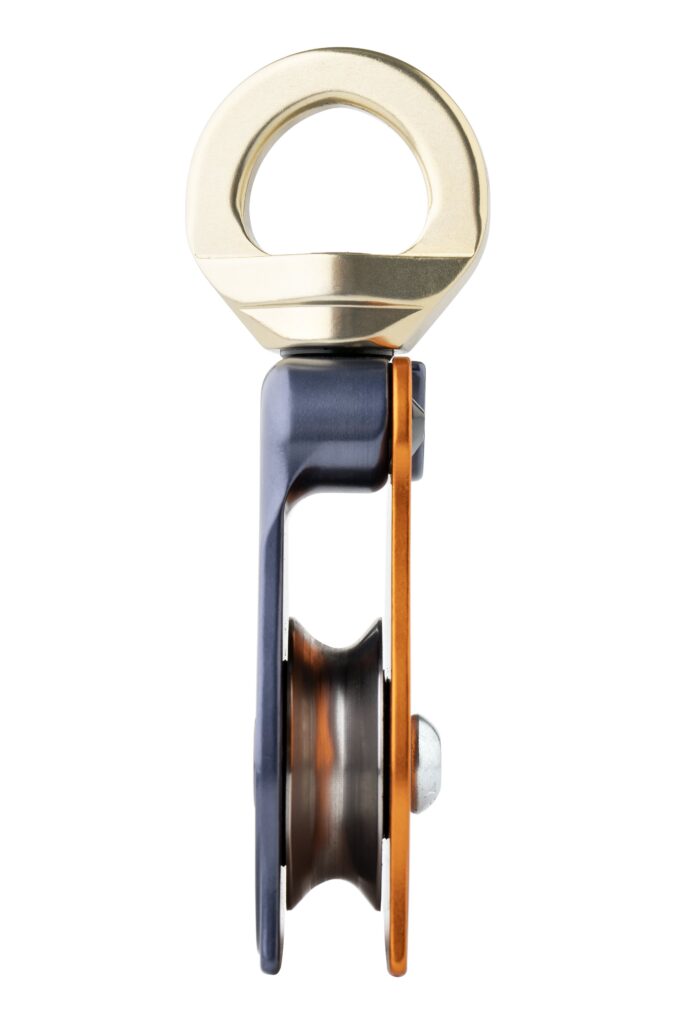

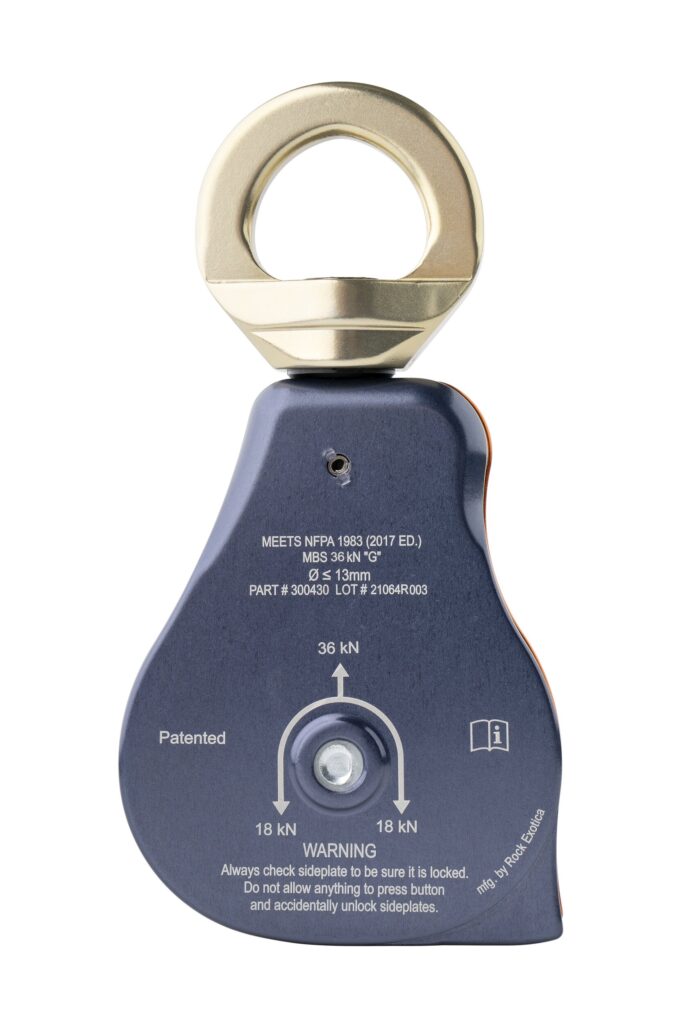

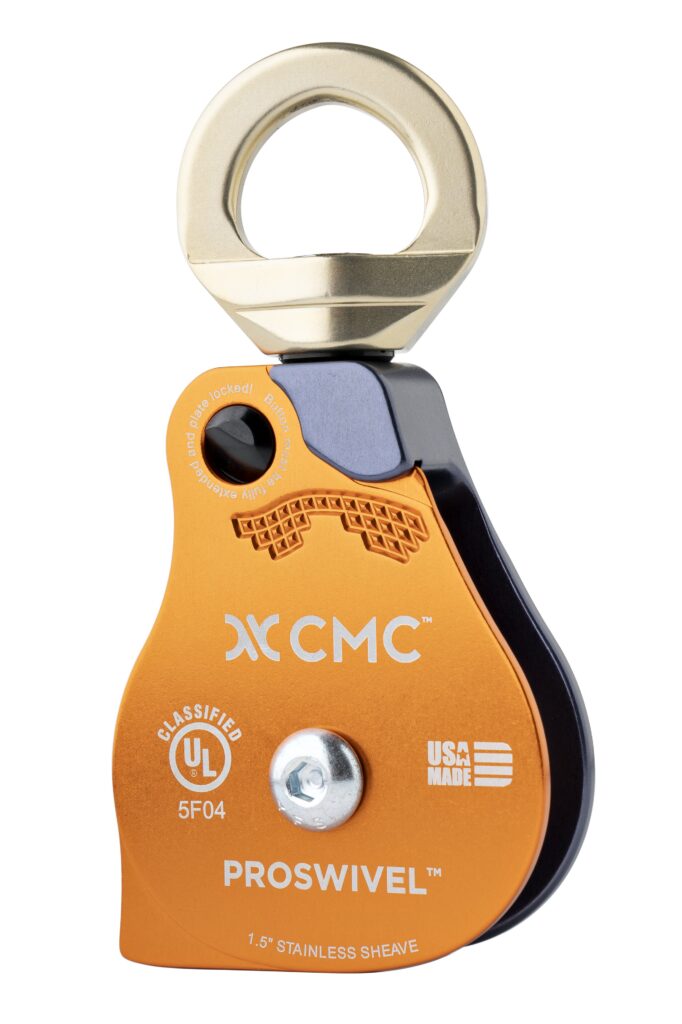

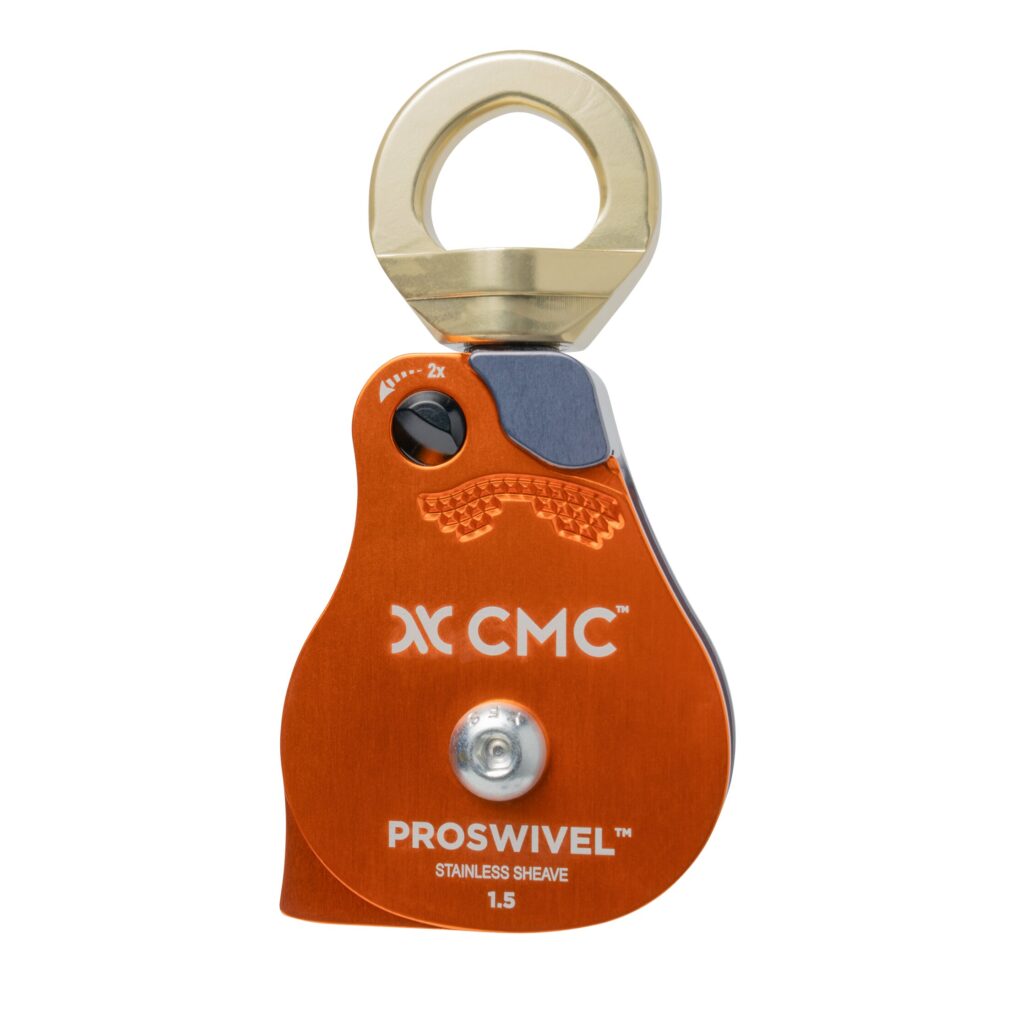

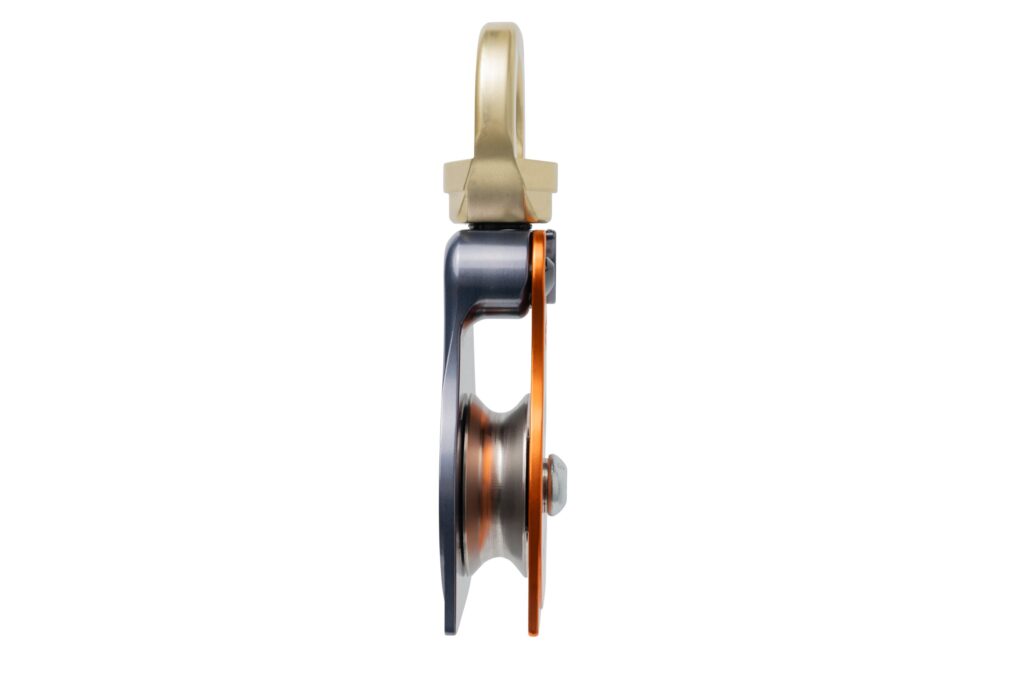

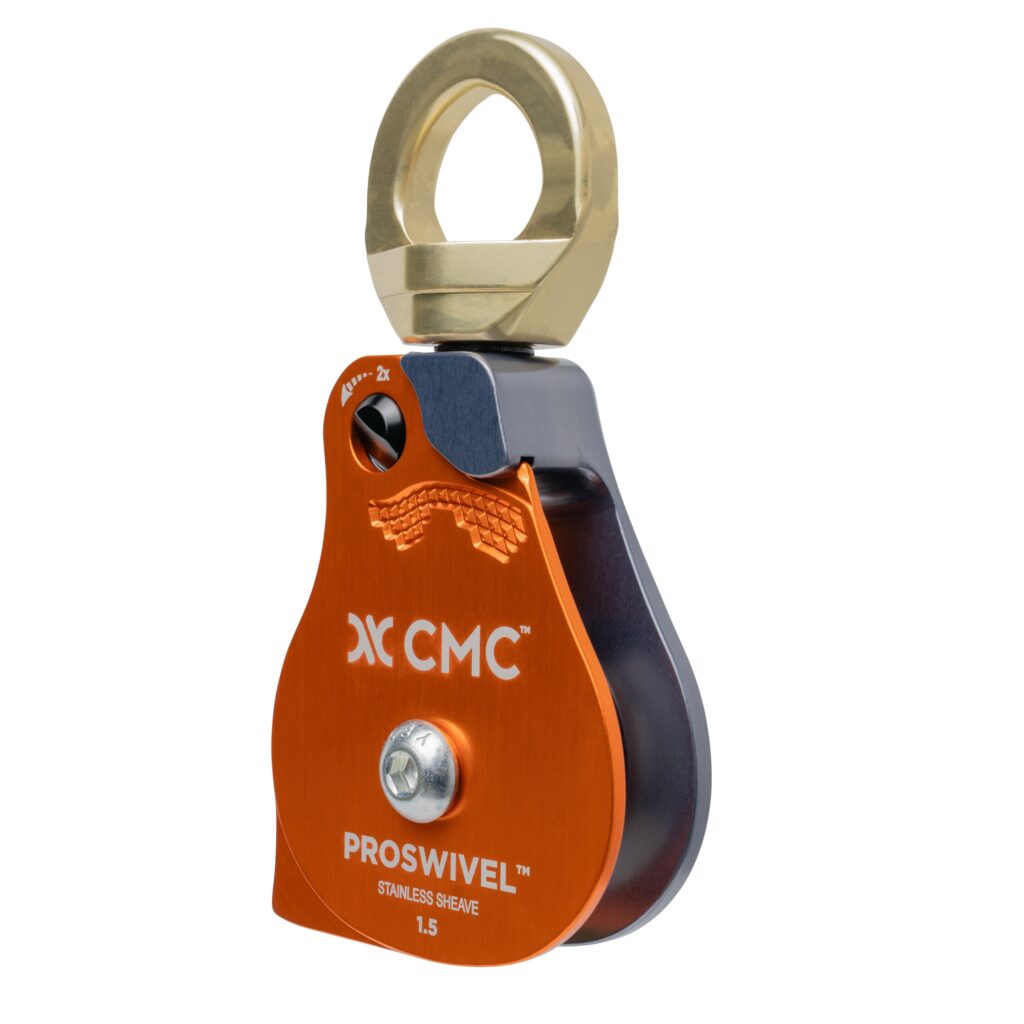

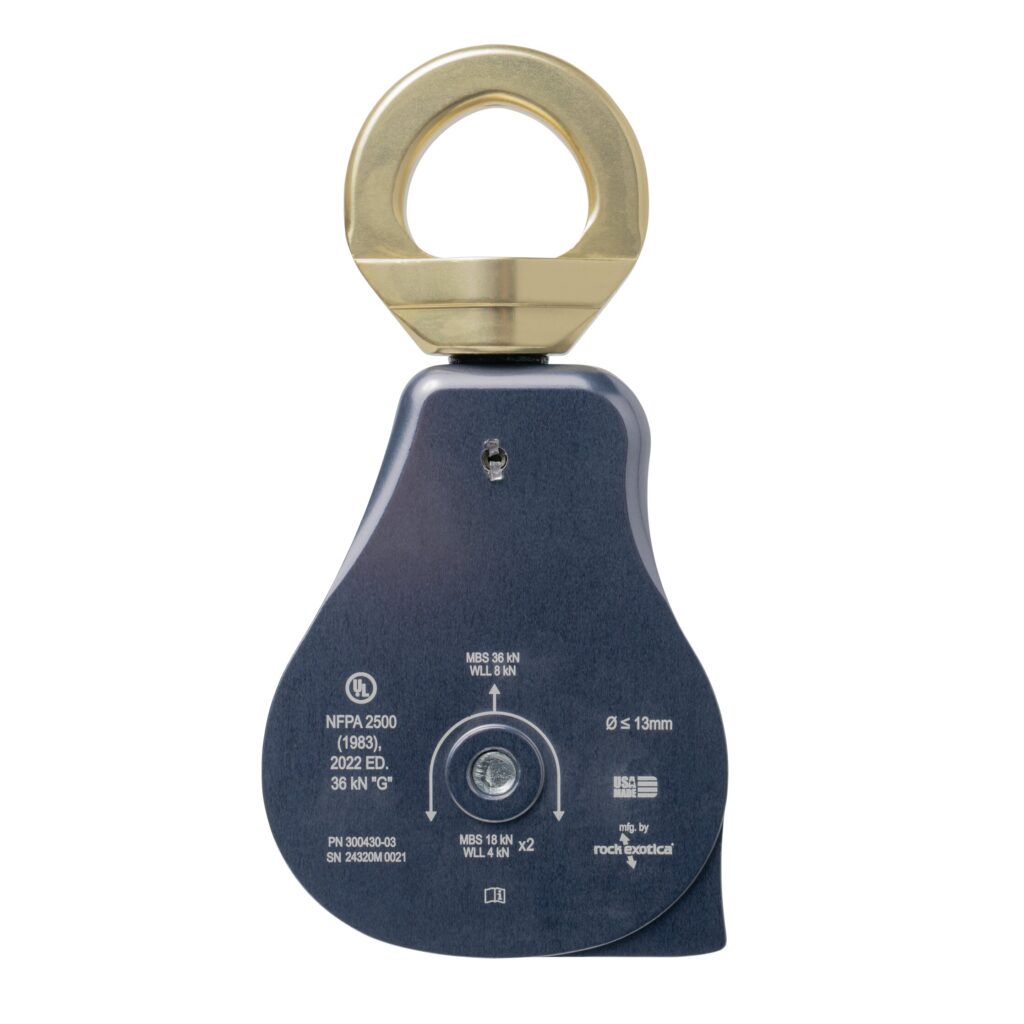

Option1.5” PMP SS Single Swivel PulleyItem300430PRODUCT WEIGHT 331 G (11.7 OZ)PULLEY TYPE SINGLE SHEAVESHEAVE MATERIAL STAINLESS STEELHEIGHT X WIDTH 148 X 76 MM (5.8 X 3.0 IN)PULLEY COLOR BRONZE / SLATENFPA RATING GENERAL USEEN STANDARDS N/A3 SIGMA MBS 36 KN (8,093 LBF)Price$149

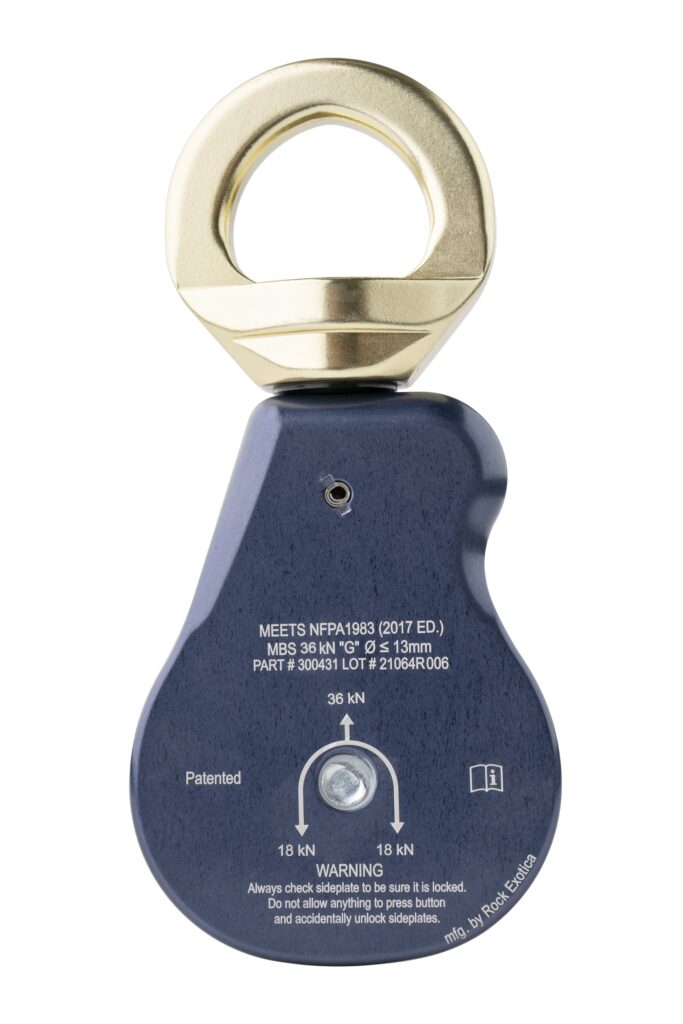

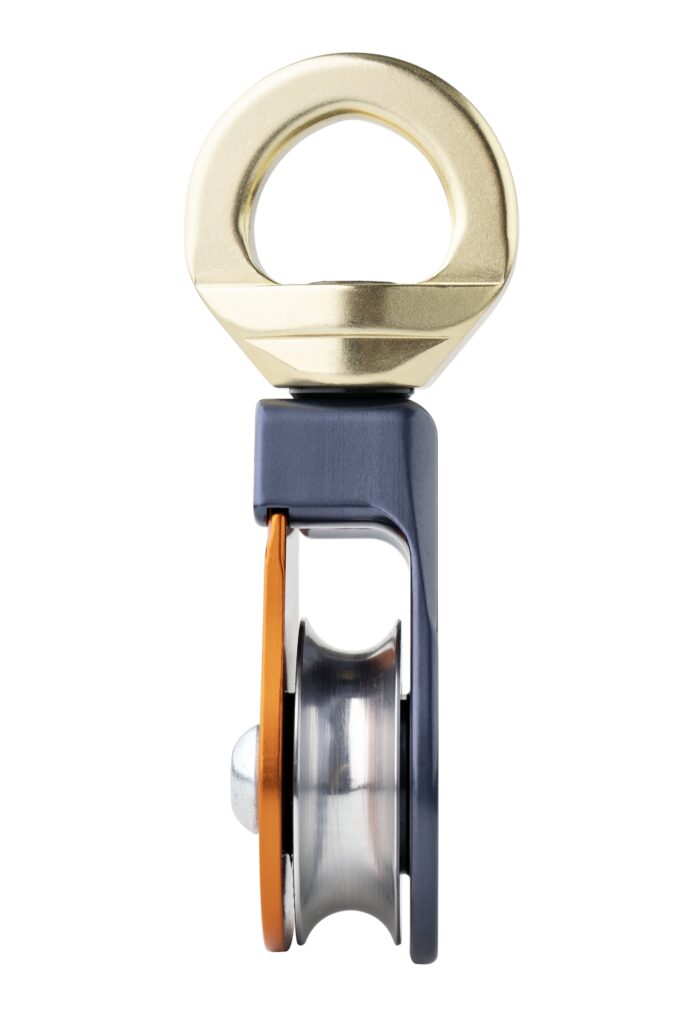

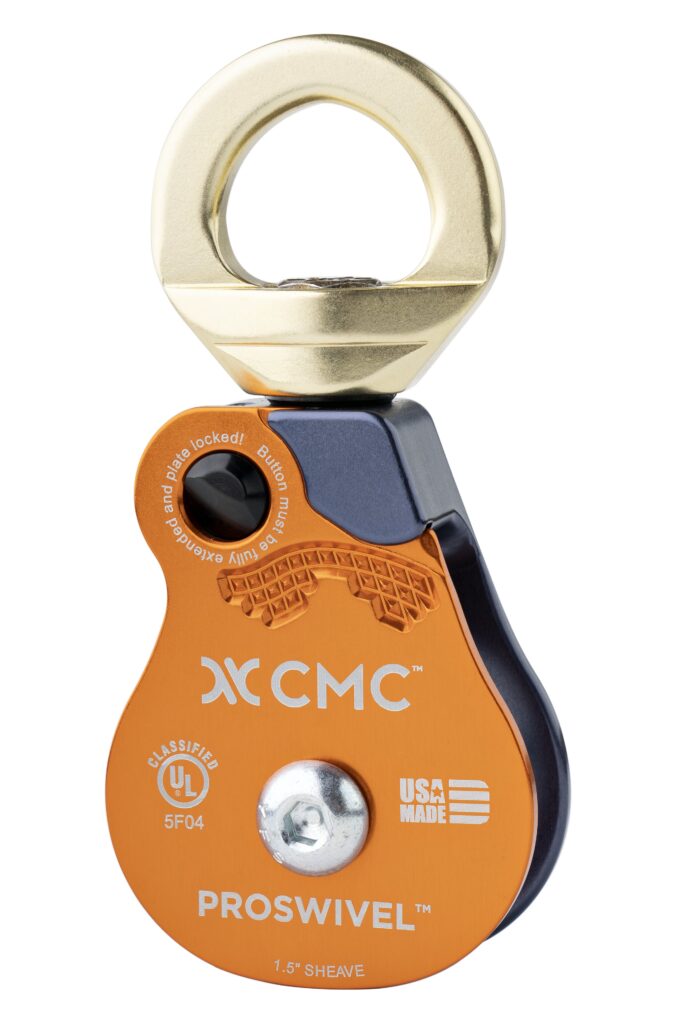

Option1.5" Single Swivel PulleyItem300431PRODUCT WEIGHT 261 G (9.2 OZ)PULLEY TYPE SINGLE SHEAVESHEAVE MATERIAL ALUMINUMHEIGHT X WIDTH 135 X 63 MM (5.3 X 2.5 IN)PULLEY COLOR BRONZE / SLATENFPA RATING GENERAL USEEN STANDARDS EN 122783 SIGMA MBS 36 KN (8,093 LBF)Price$112

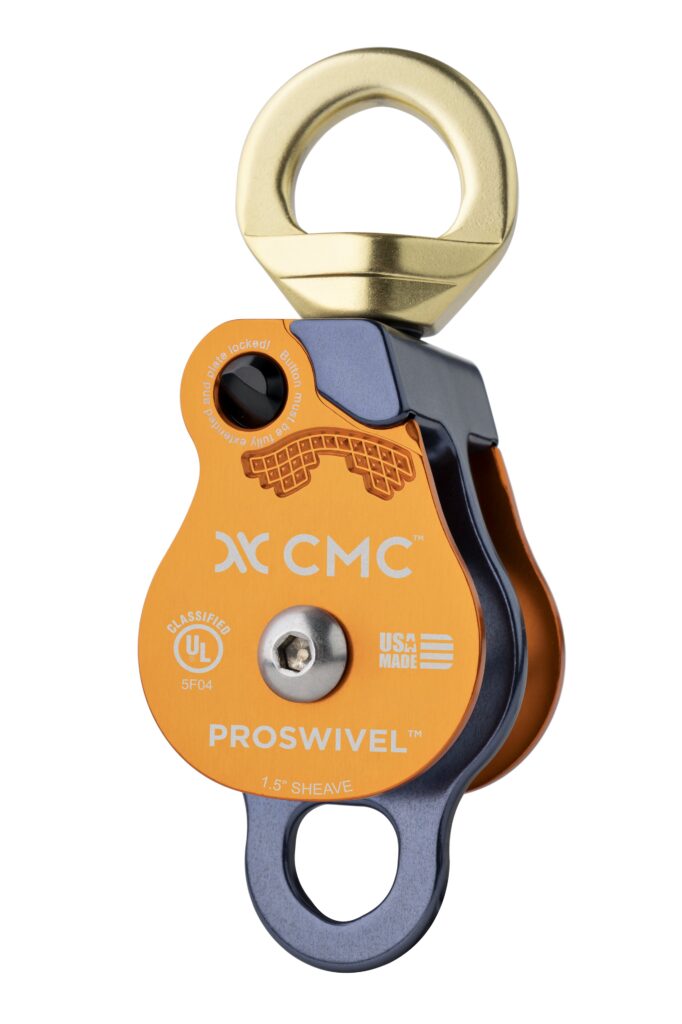

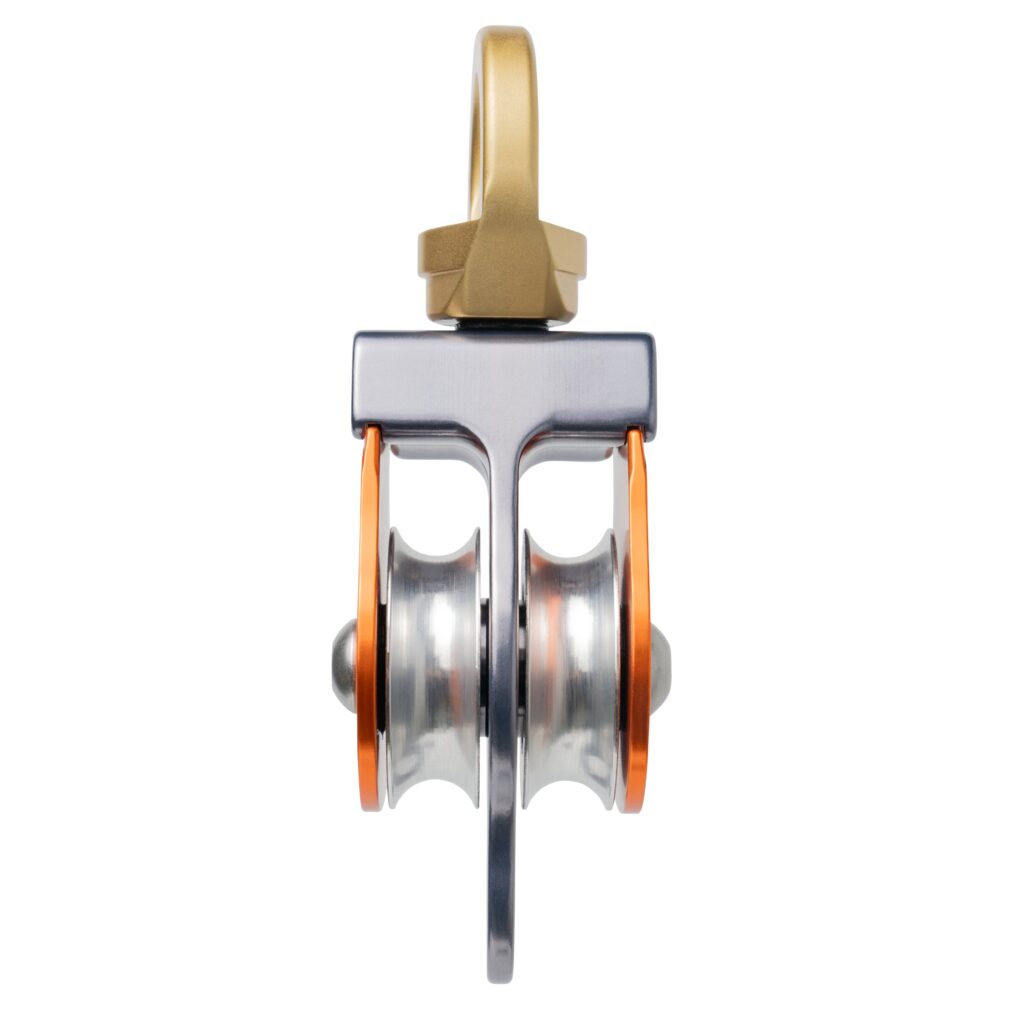

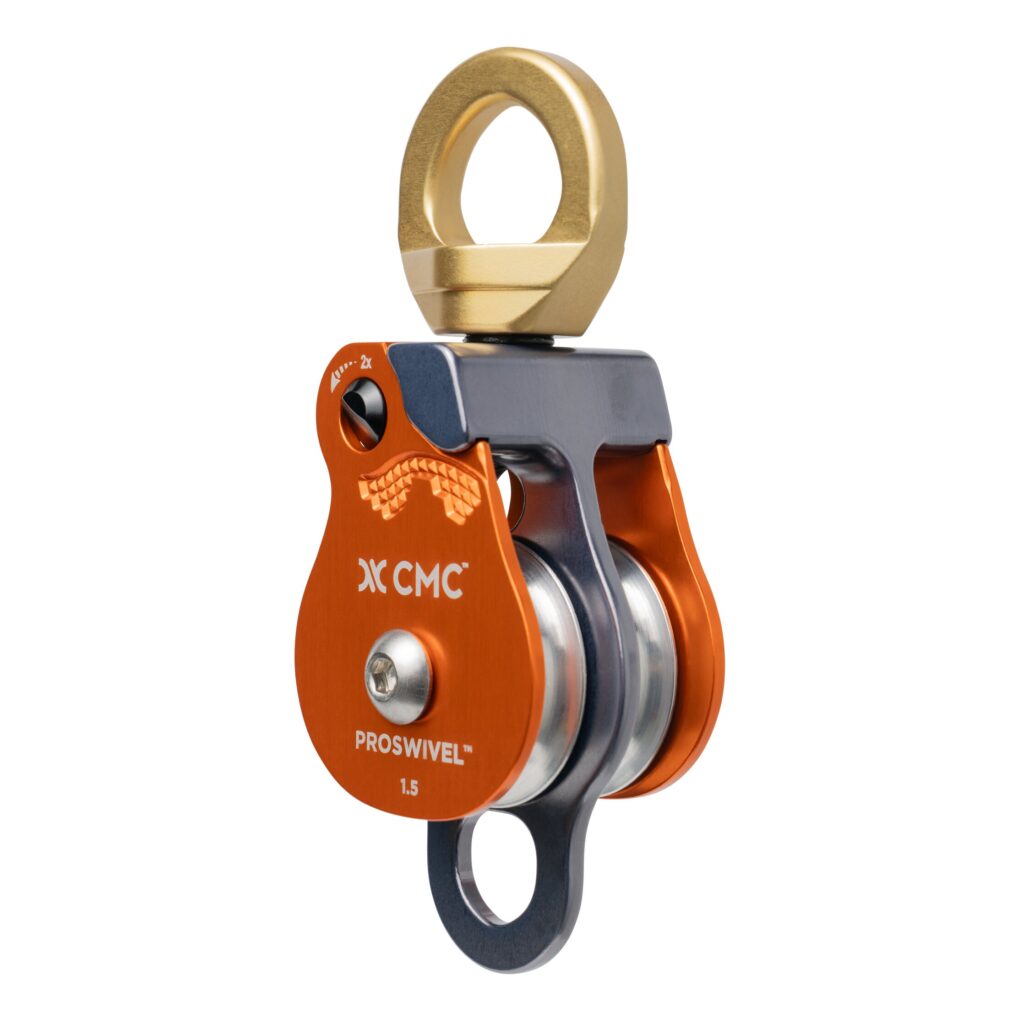

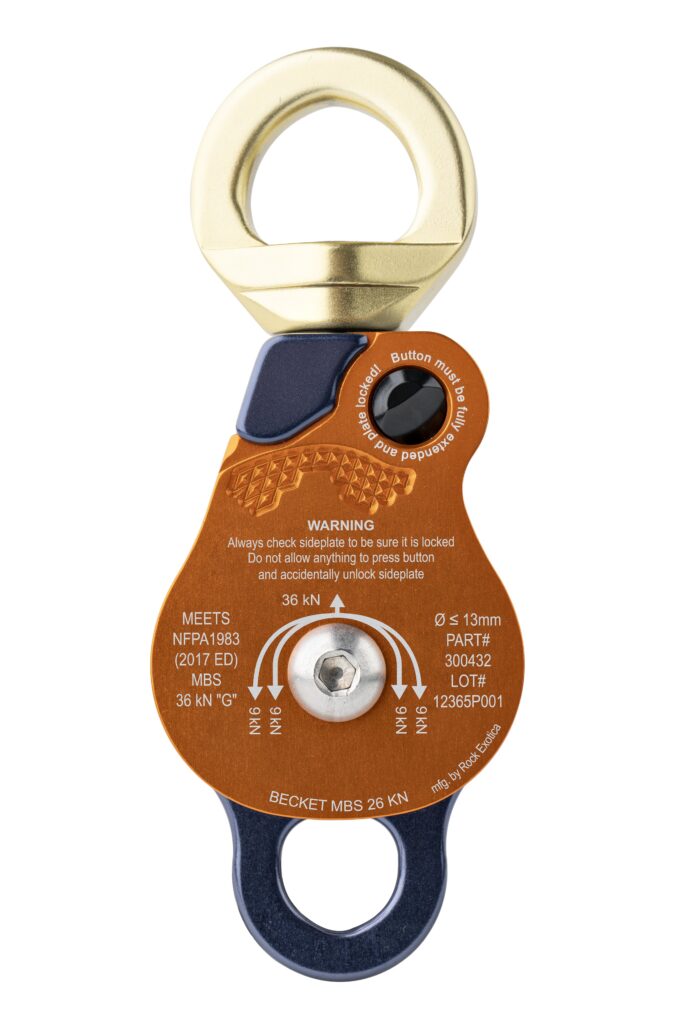

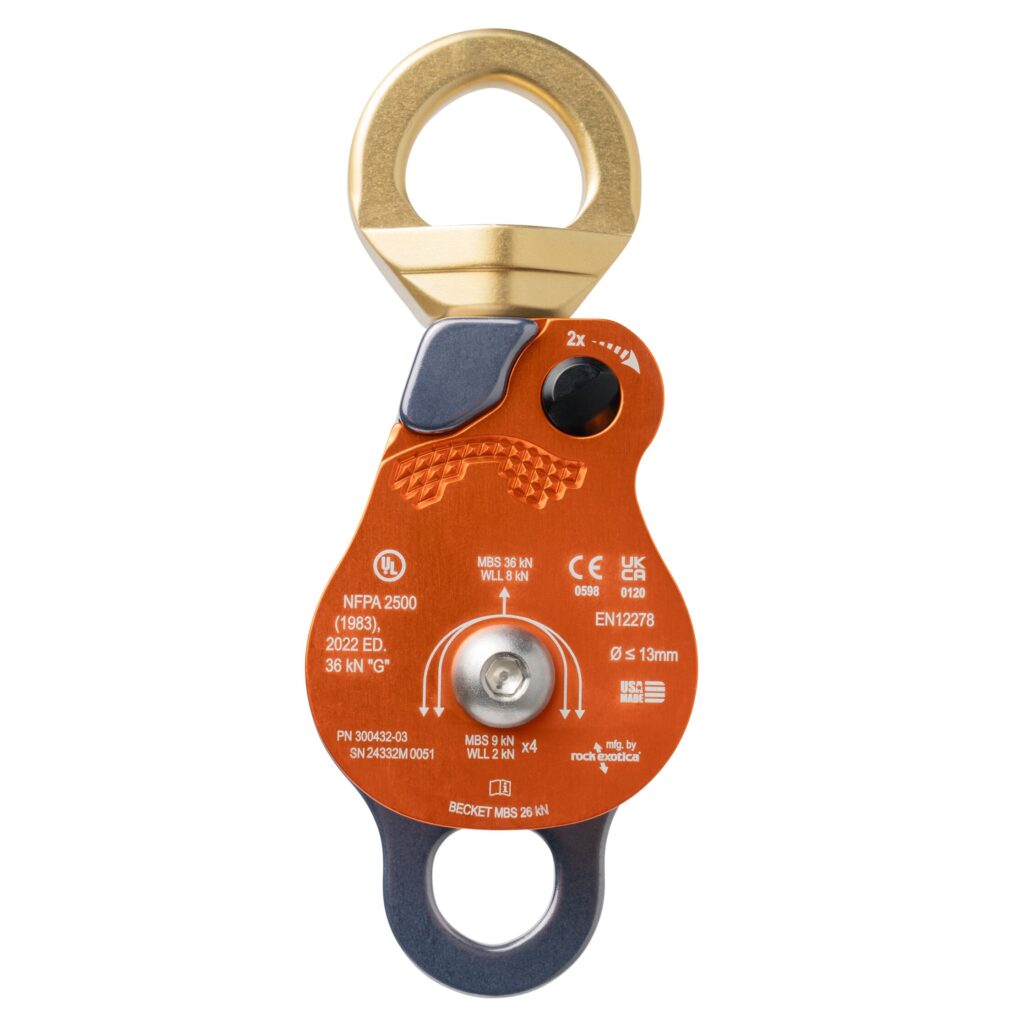

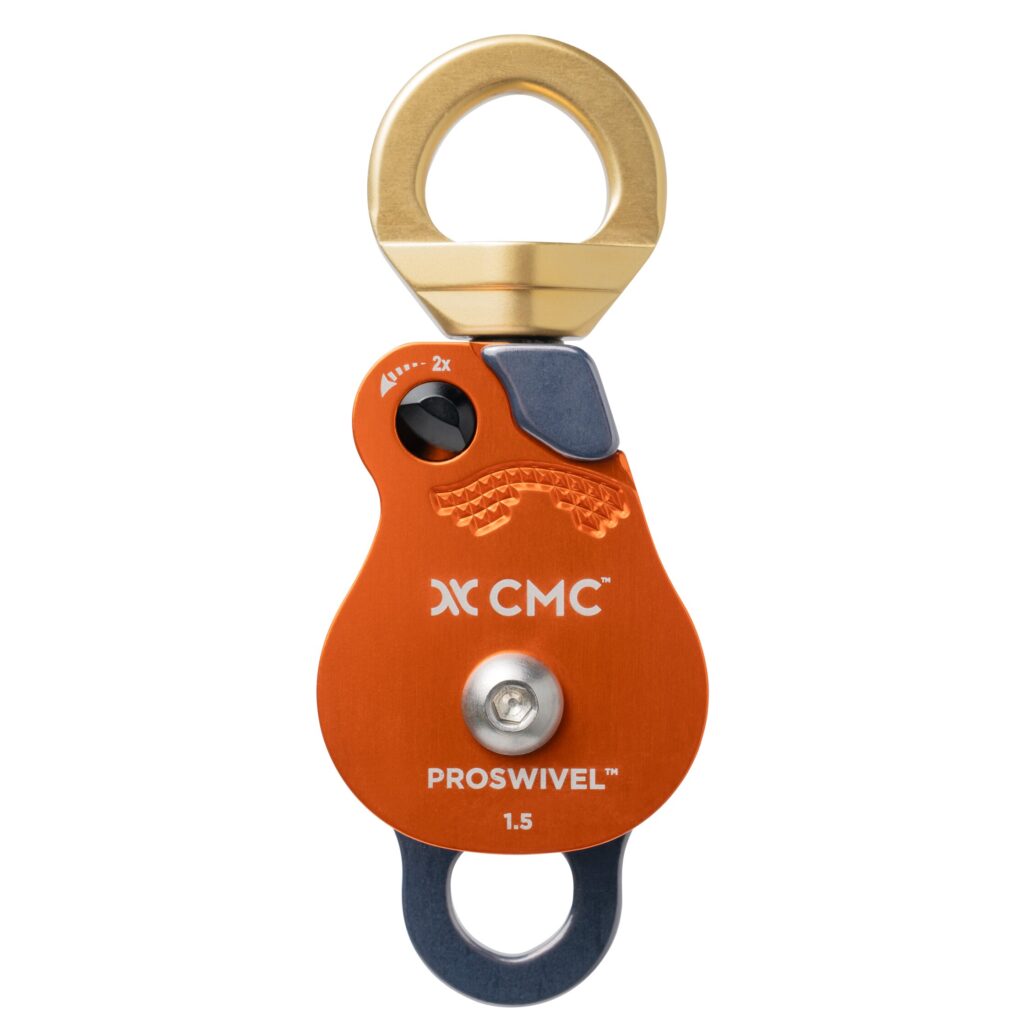

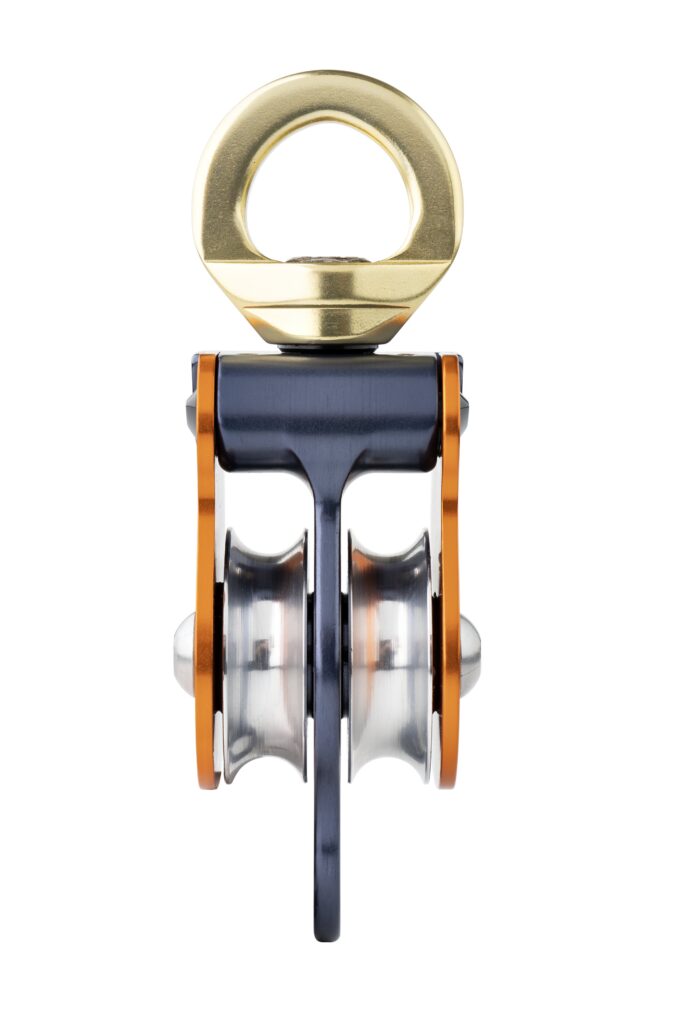

Option1.5" Double Swivel PulleyItem300432PRODUCT WEIGHT 415 G (14.6 OZ)PULLEY TYPE DOUBLE SHEAVESHEAVE MATERIAL ALUMINUMHEIGHT X WIDTH 160 X 63 MM (6.3 X 2.5 IN)PULLEY COLOR BRONZE / SLATENFPA RATING GENERAL USEEN STANDARDS N/A3 SIGMA MBS 36 KN (8,093 LBF)Price$162

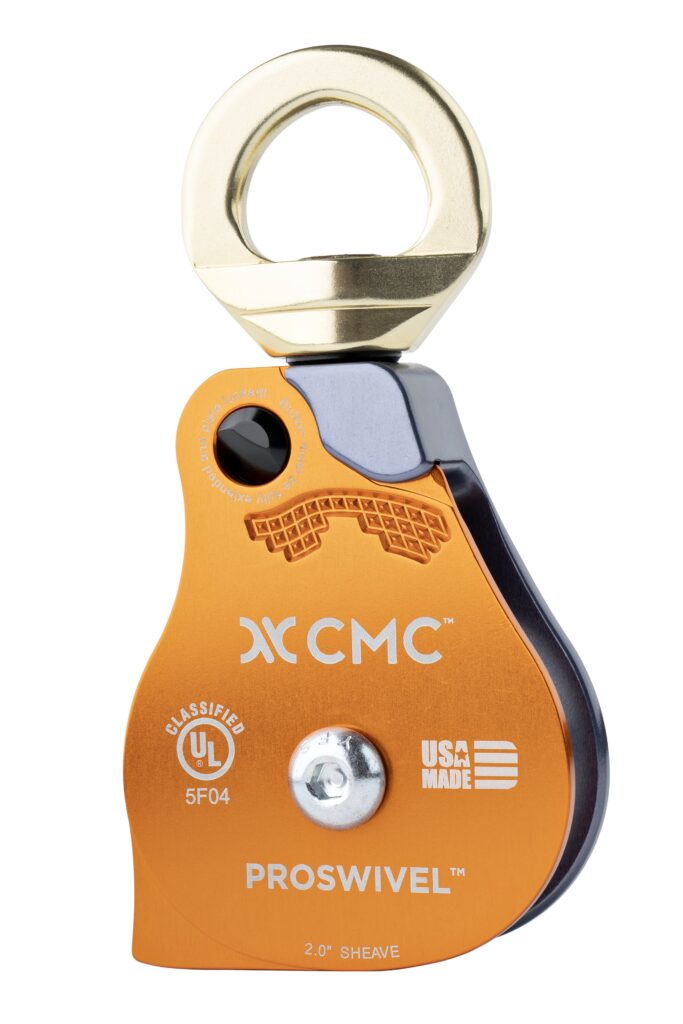

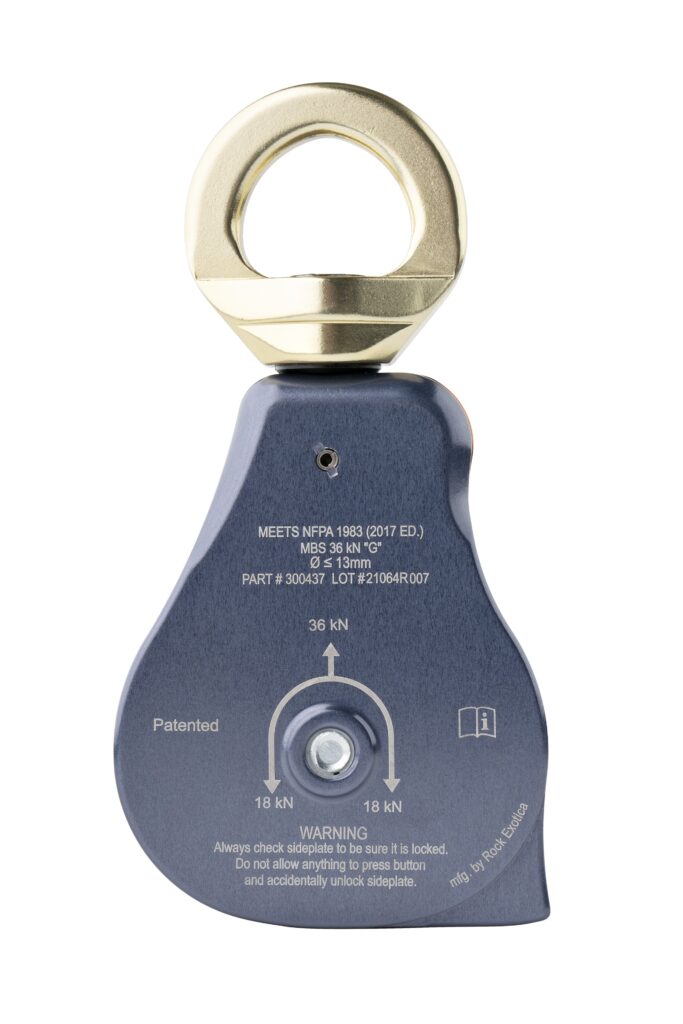

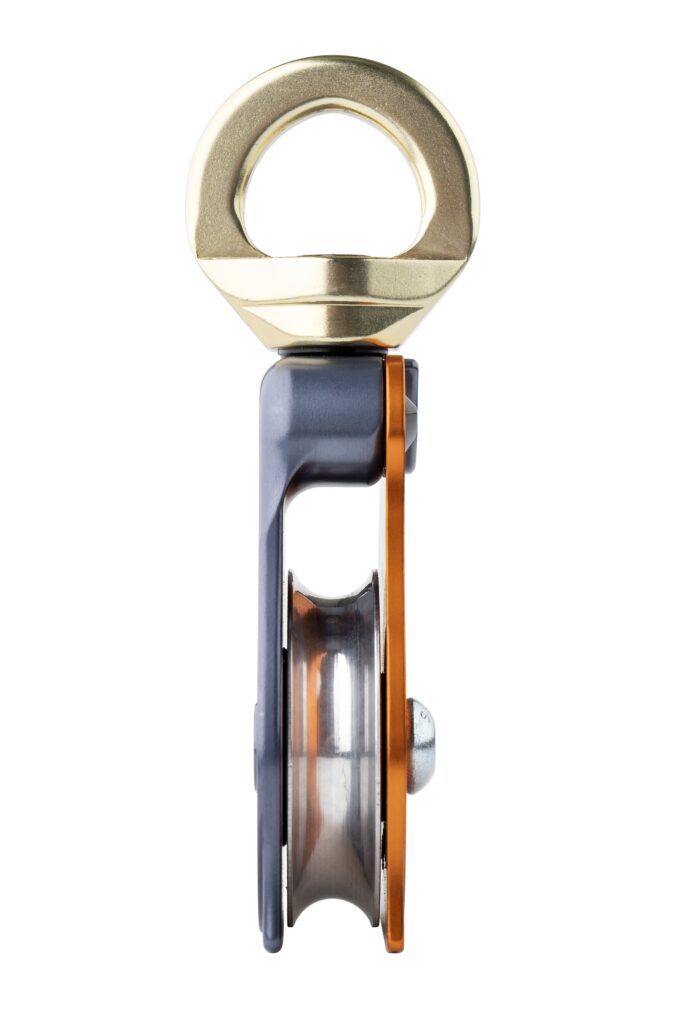

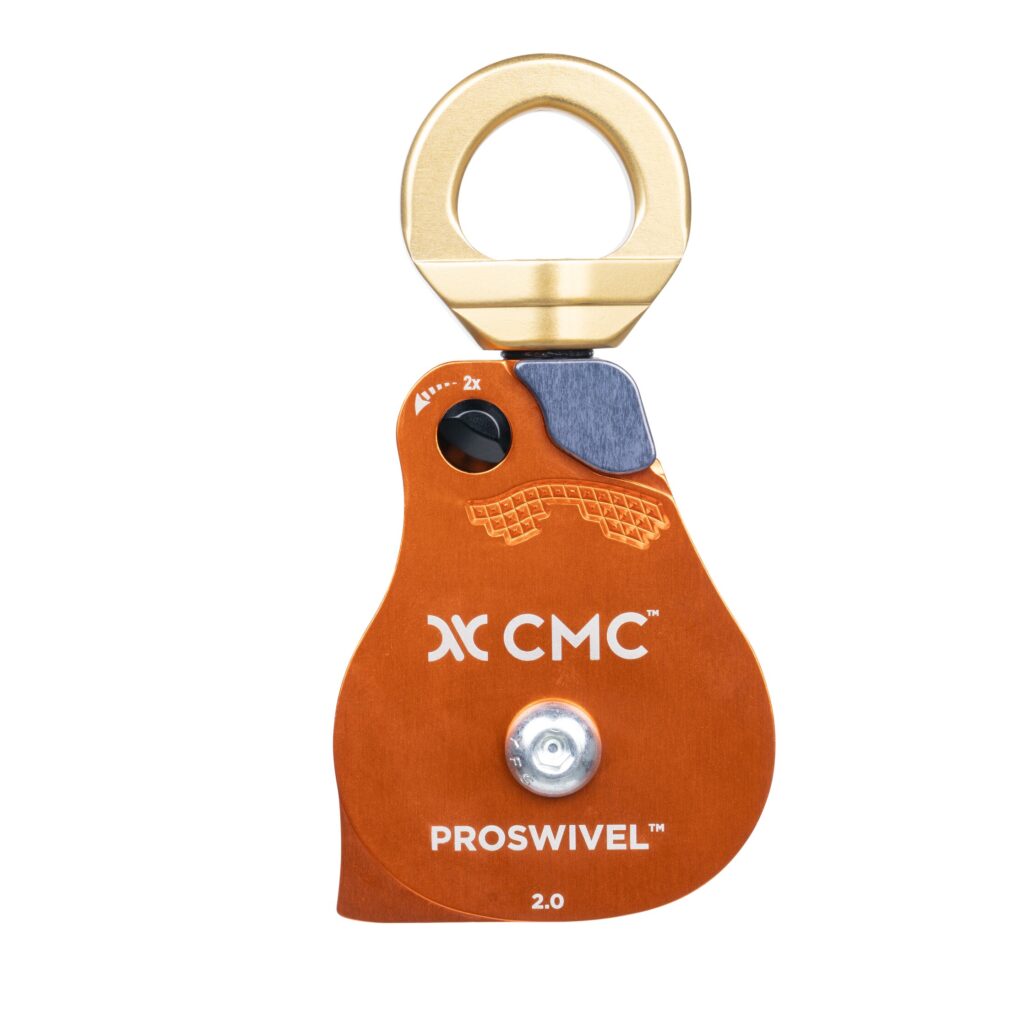

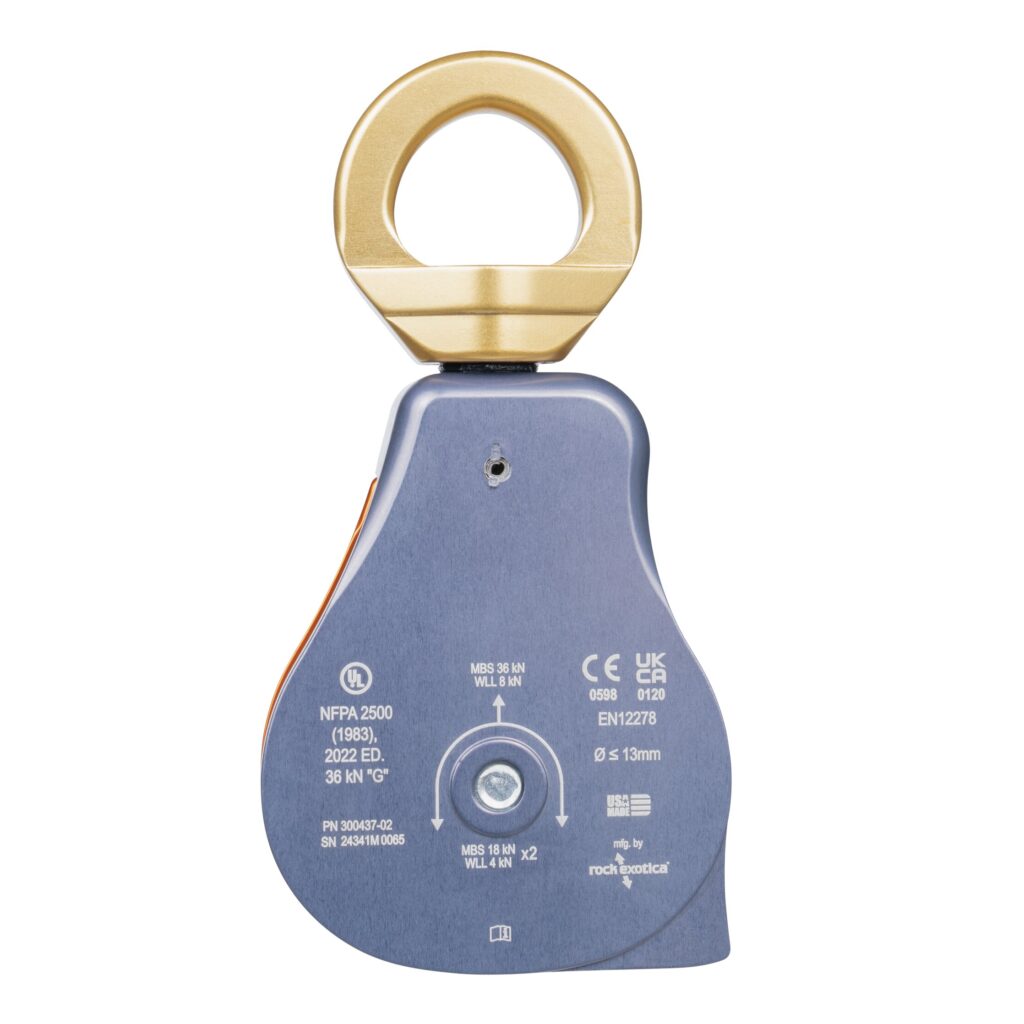

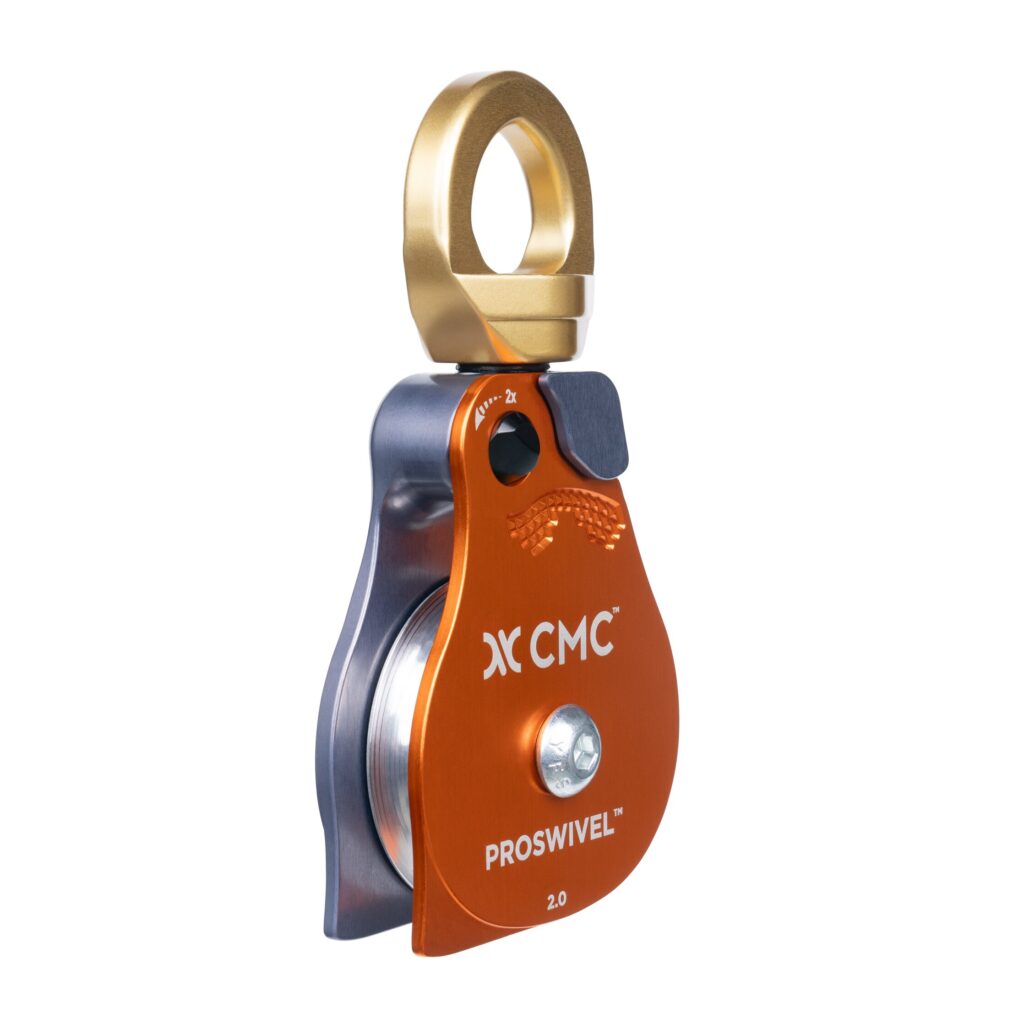

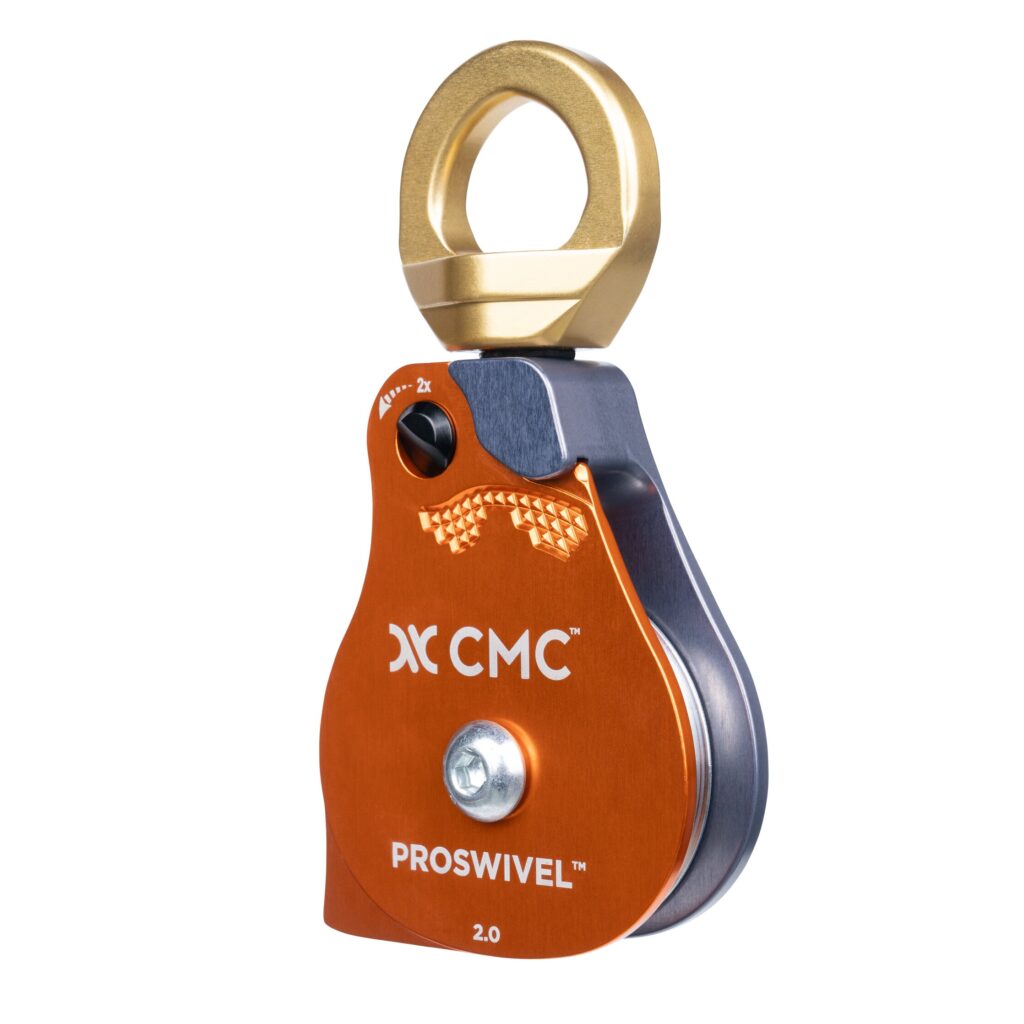

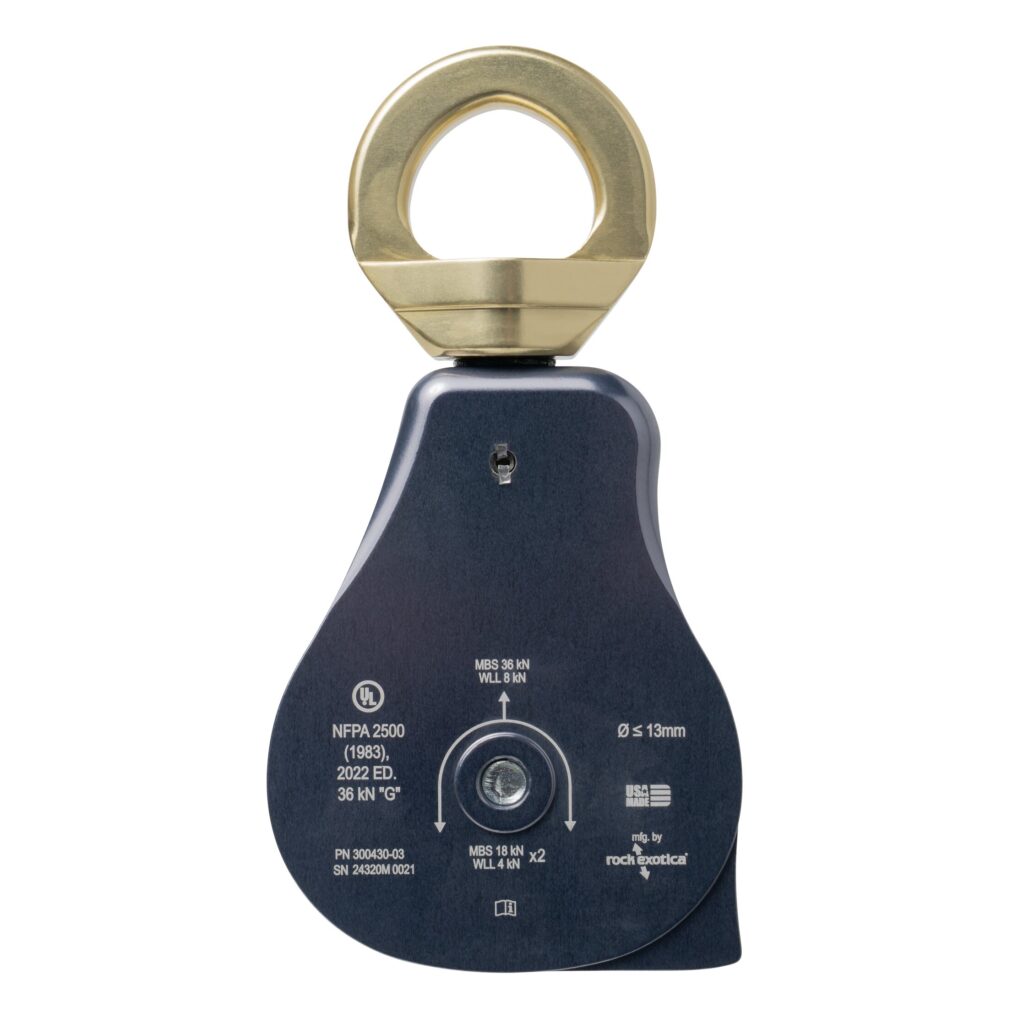

Option2.0" PMP Single Swivel PulleyItem300437PRODUCT WEIGHT 349 G (12.3 OZ)PULLEY TYPE SINGLE SHEAVESHEAVE MATERIAL ALUMINUMHEIGHT X WIDTH 148 X 76 MM (5.8 X 3.0 IN)PULLEY COLOR BRONZE / SLATENFPA RATING GENERAL USEEN STANDARDS EN 122783 SIGMA MBS 36 KN (8,093 LBF)Price$138

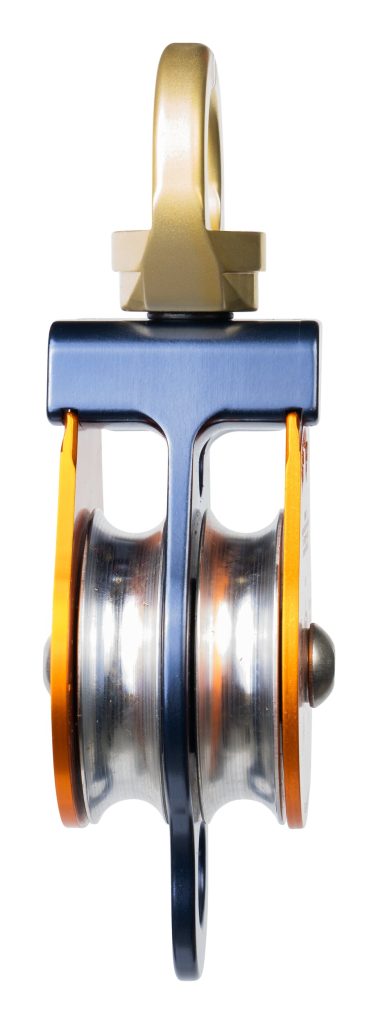

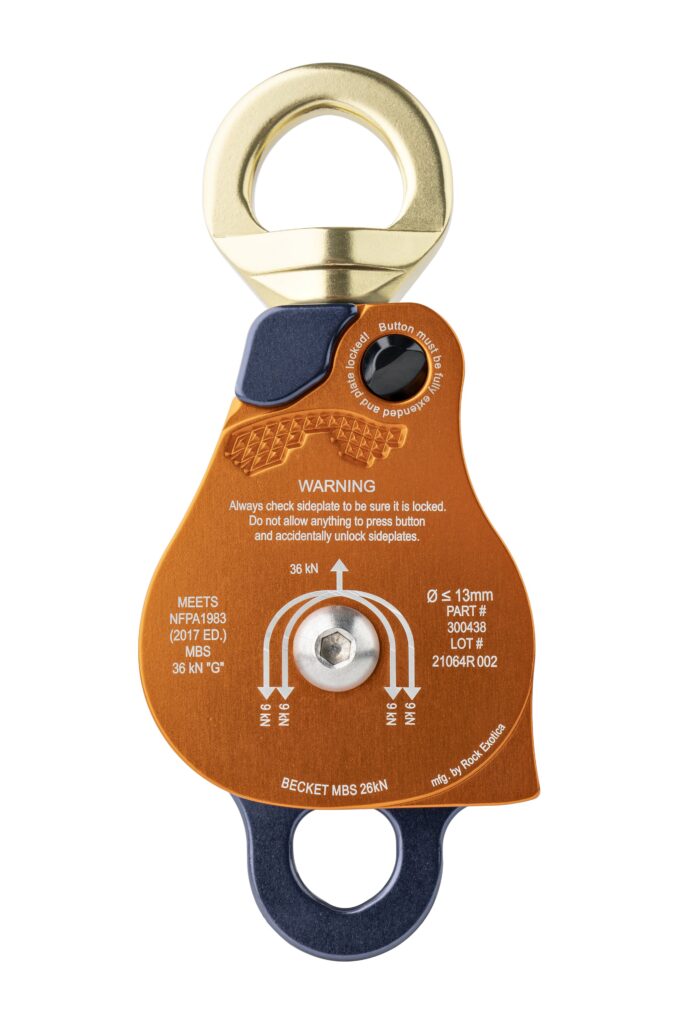

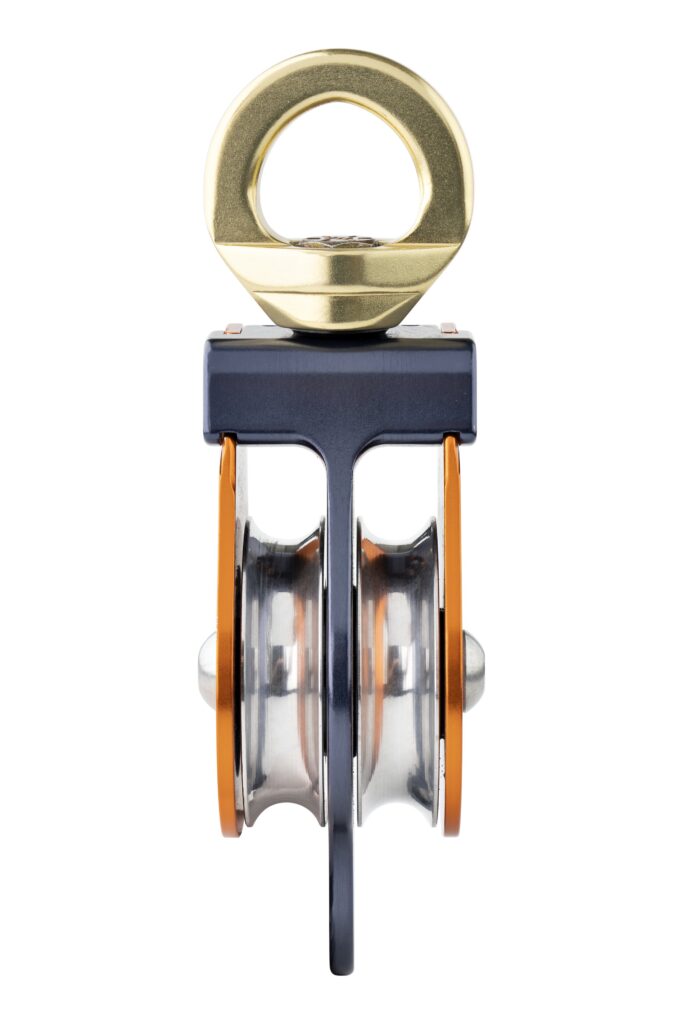

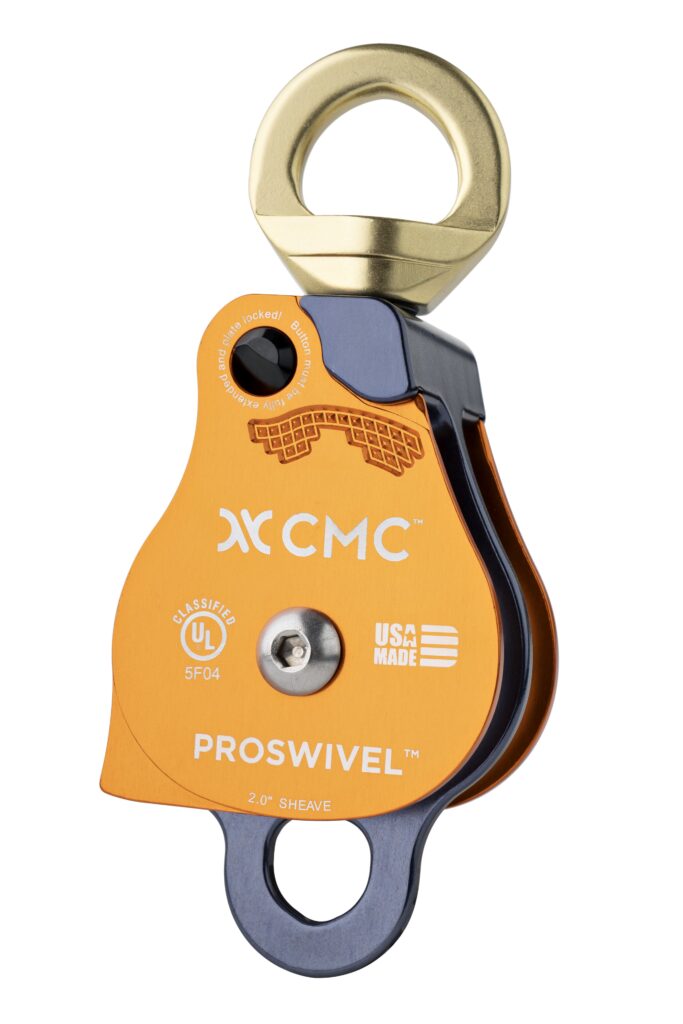

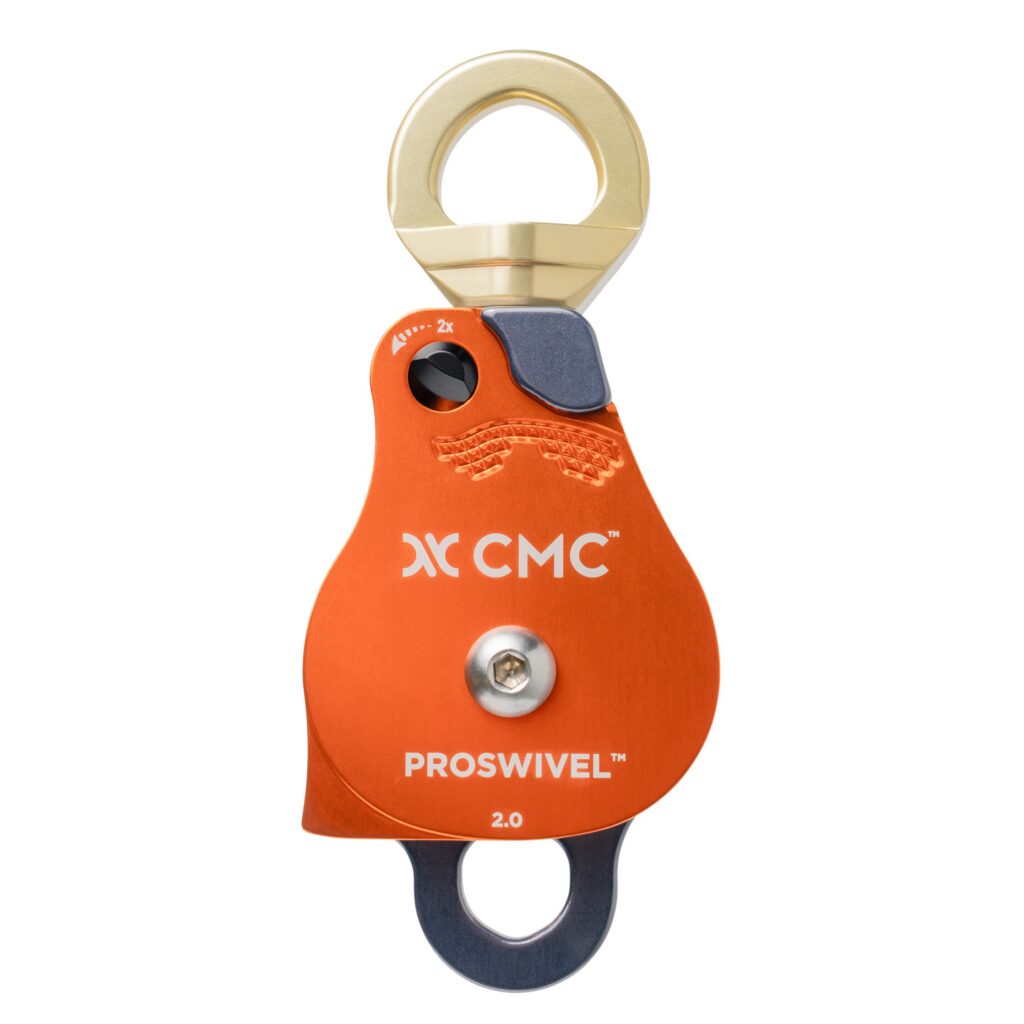

Option2.0" PMP Double Swivel PulleyItem300438PRODUCT WEIGHT 585 G (20.6 OZ)PULLEY TYPE DOUBLE SHEAVESHEAVE MATERIAL ALUMINUMHEIGHT X WIDTH 180 X 76 MM (7.0 X 3.0 IN)PULLEY COLOR BRONZE / SLATENFPA RATING GENERAL USEEN STANDARDS EN 122783 SIGMA MBS 36 KN (8,093 LBF)Price$205

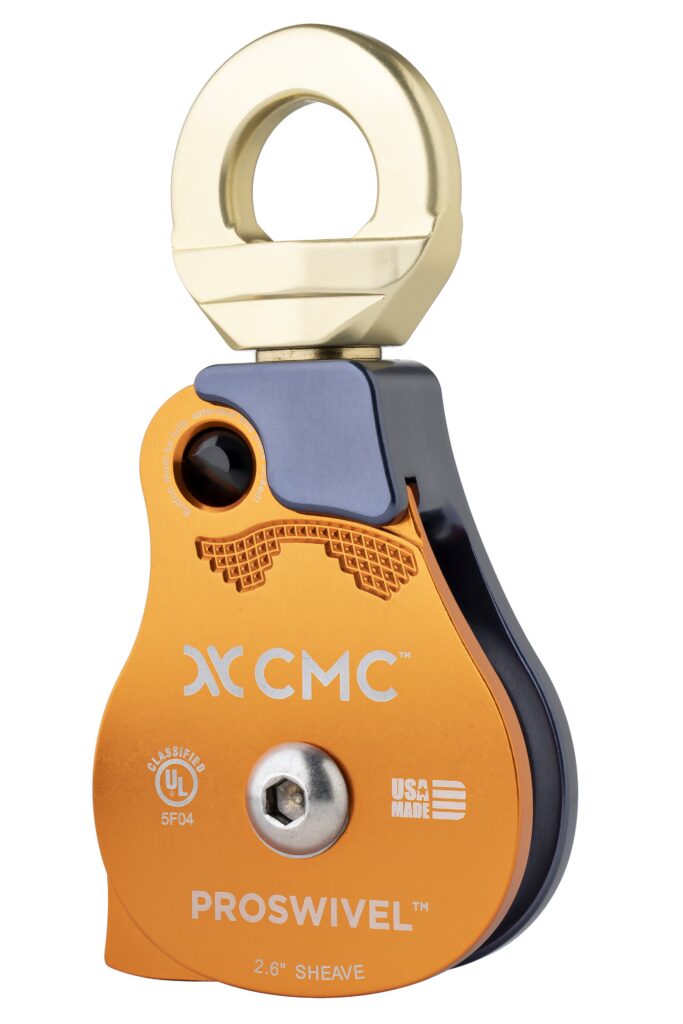

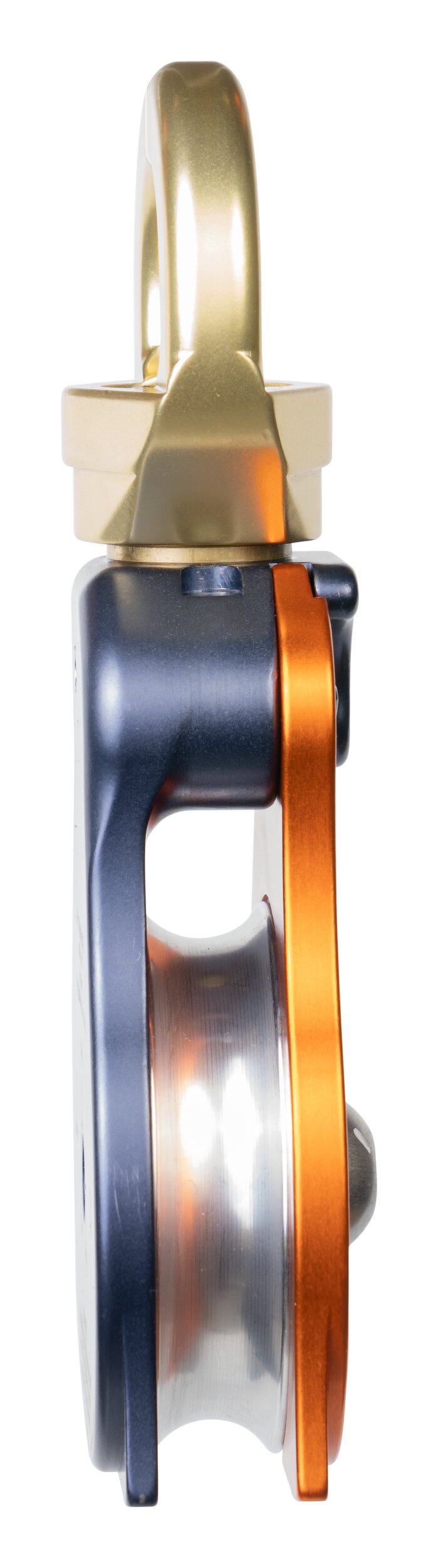

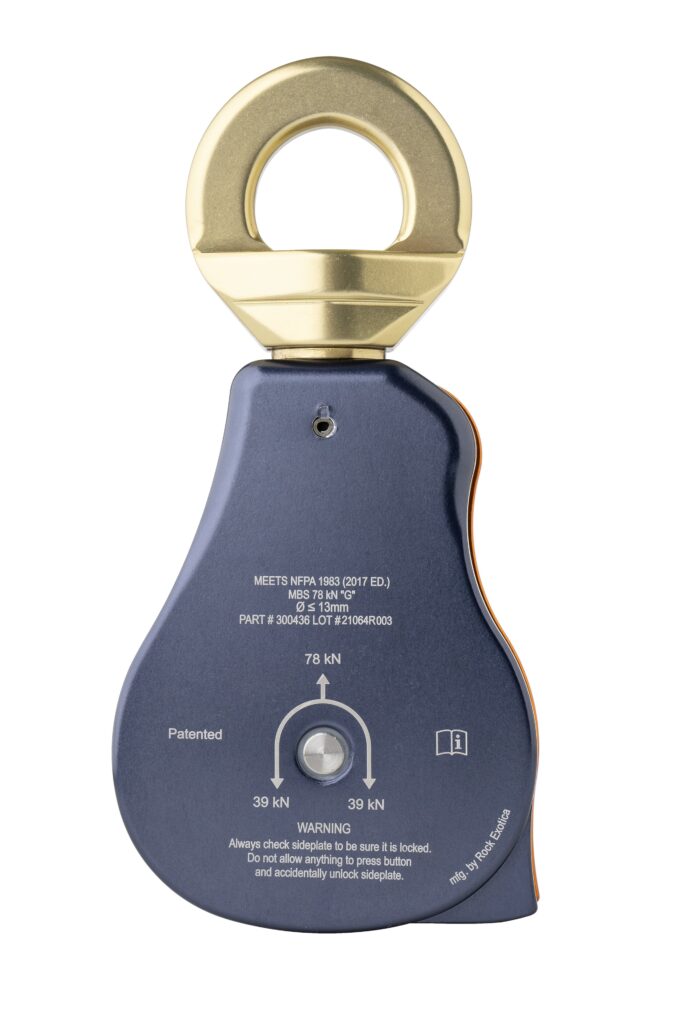

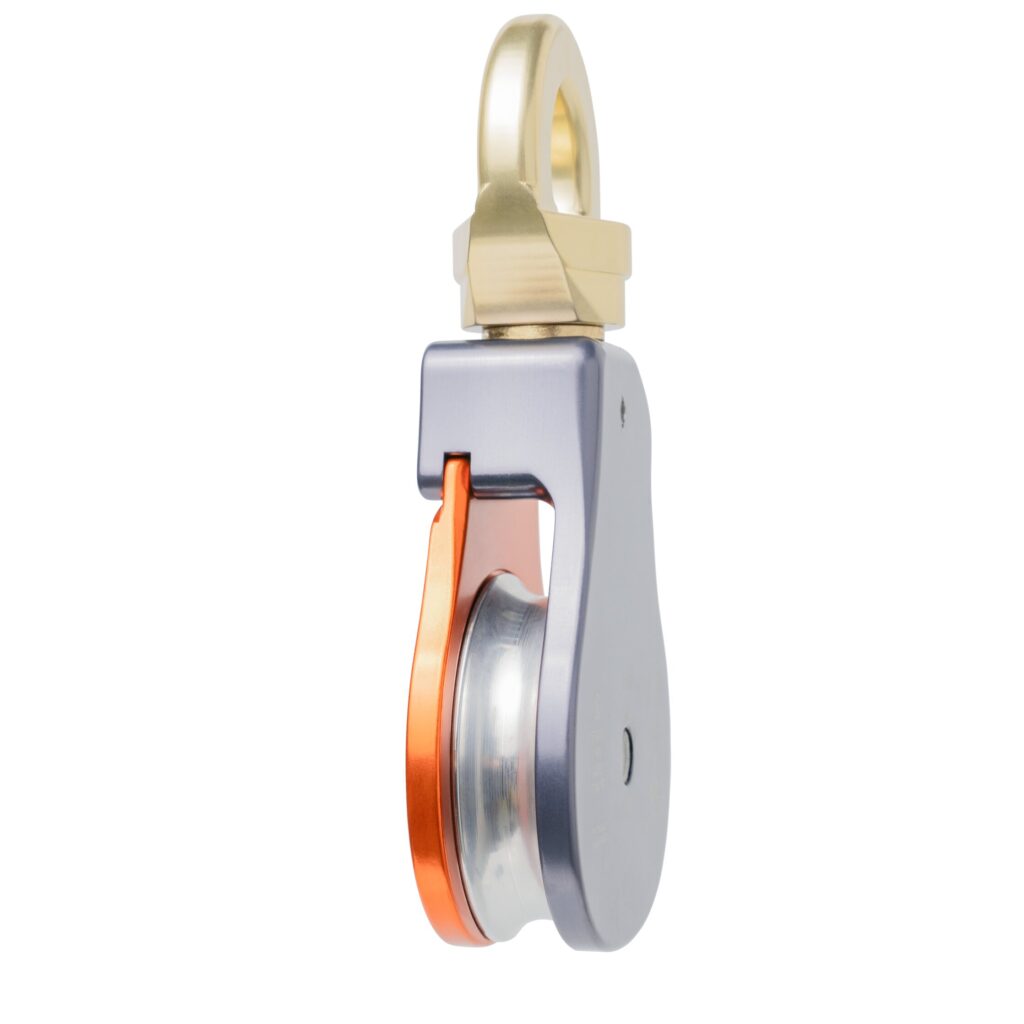

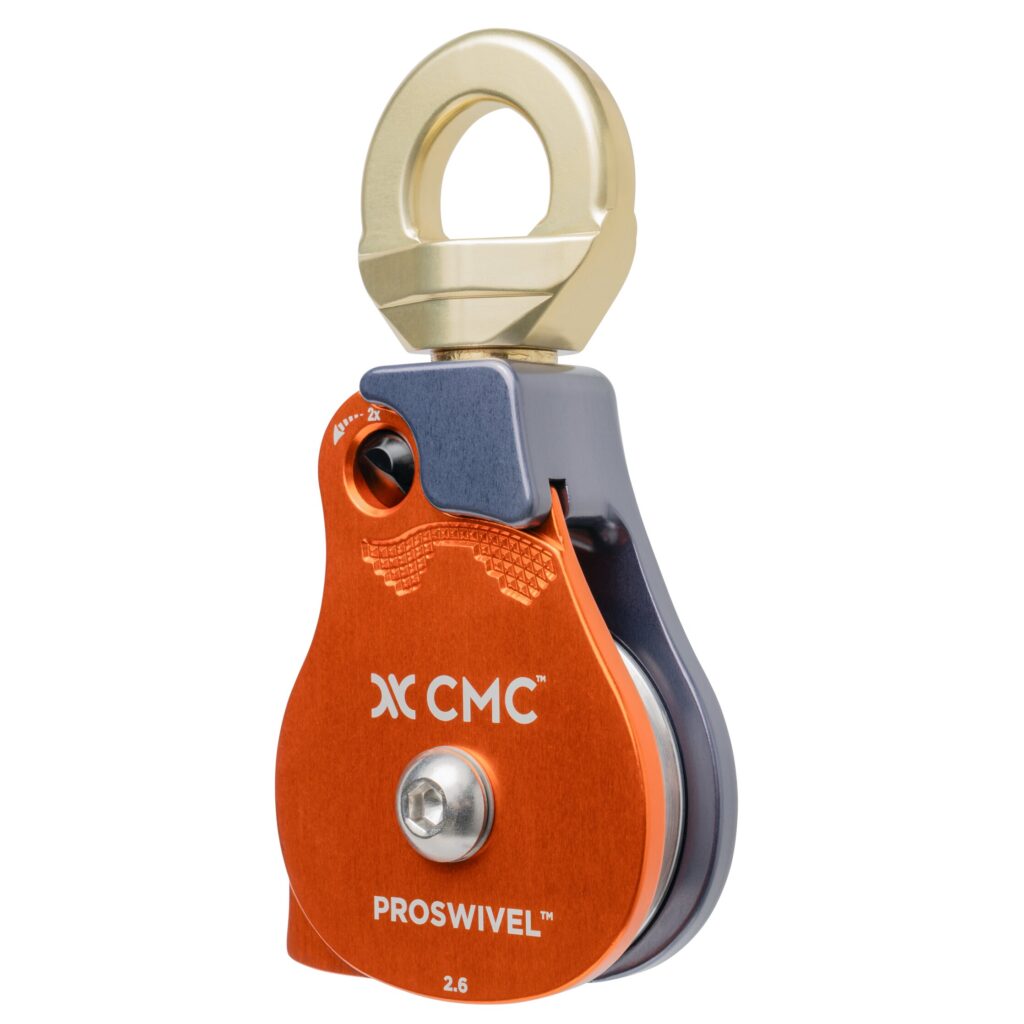

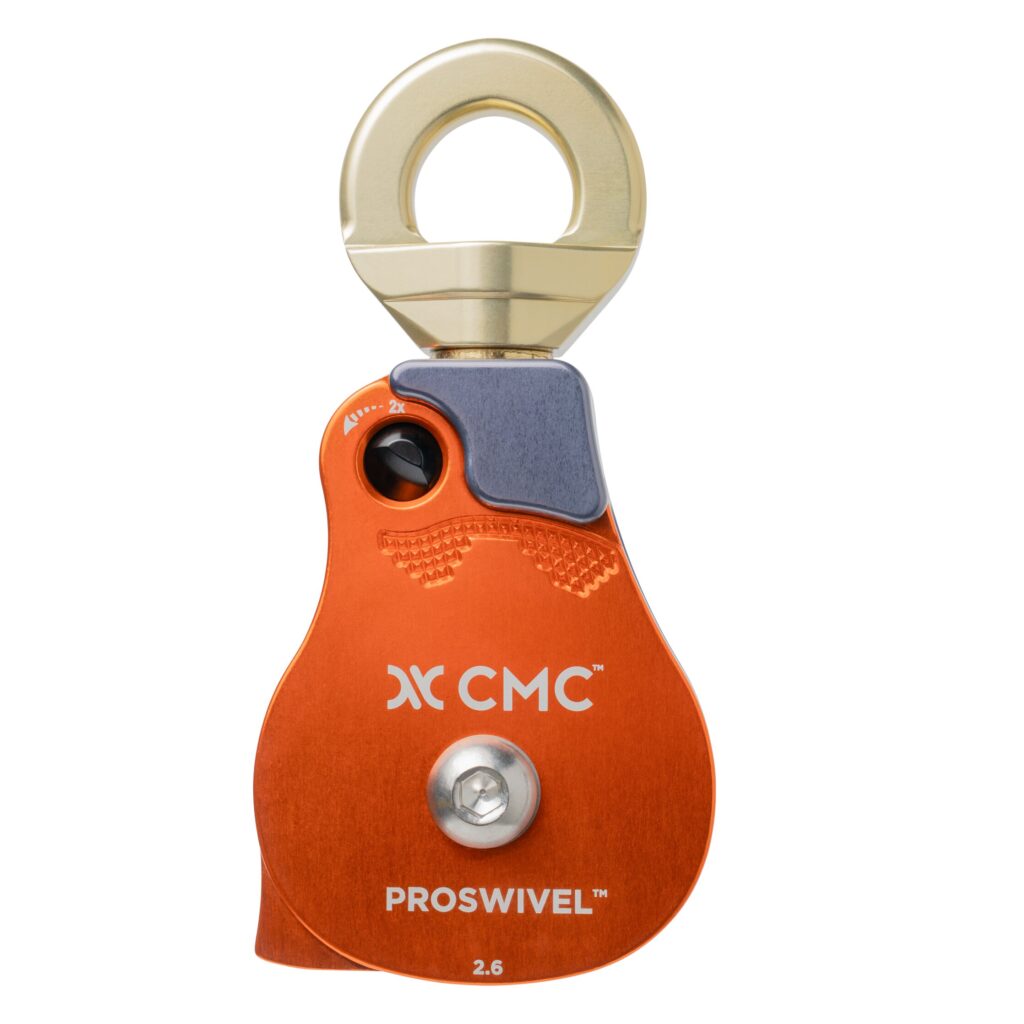

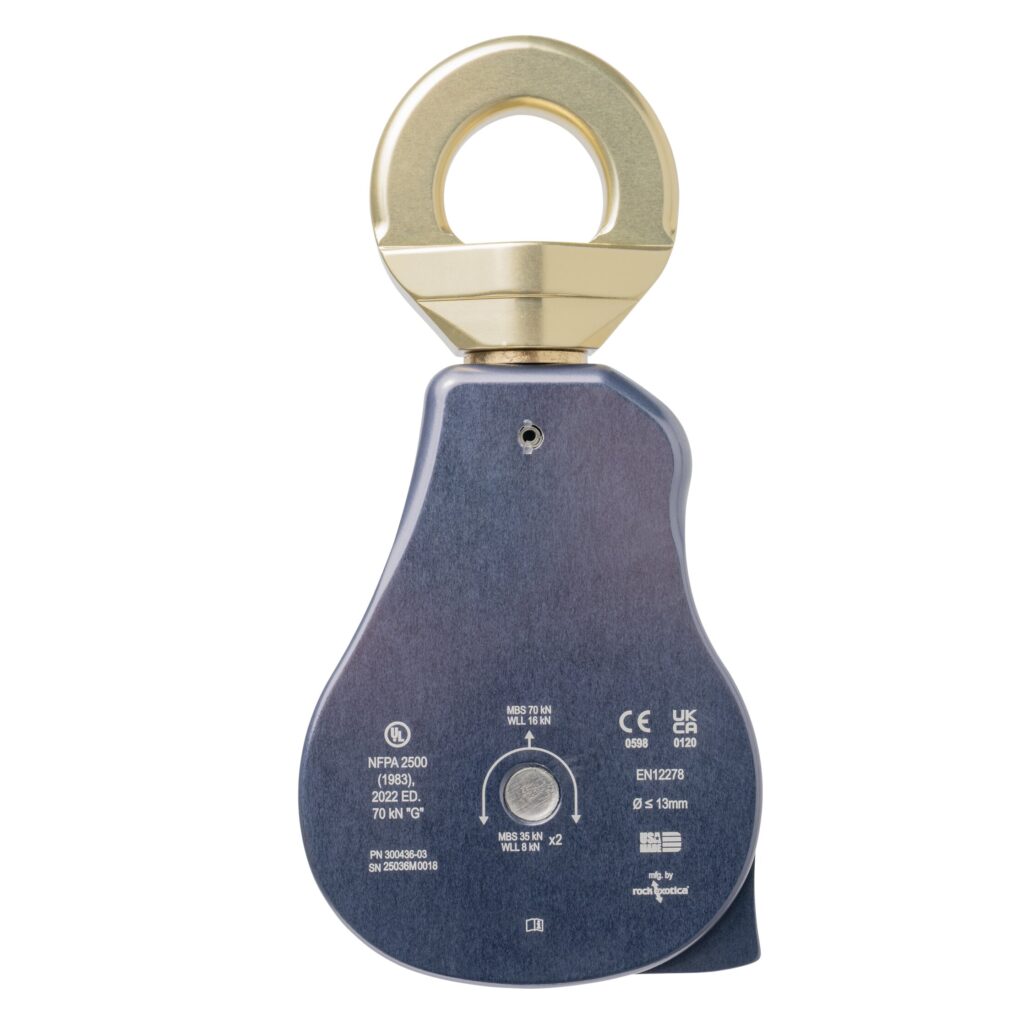

Option2.6” PMP Single Swivel PulleyItem300436PRODUCT WEIGHT 841 G (29.7 OZ)PULLEY TYPE SINGLE SHEAVESHEAVE MATERIAL ALUMINUMHEIGHT X WIDTH 191 X 93 MM (7.5 X 3.6 IN)PULLEY COLOR BRONZE / SLATENFPA RATING GENERAL USEEN STANDARDS N/A3 SIGMA MBS 70 KN (15,737 LBF)Price$250
