TEUFELBERGER KM III

TEUFELBERGER KM III
A superior handling kernmantle lifeline, Teufelberger KM III static rope features composite construction, with the continuous filament polyester sheath braided over a continuous nylon fiber core. Featuring a weight-balanced construction with the shea… Learn More
Add to Cart
Learn More

A superior handling kernmantle lifeline, Teufelberger KM III static rope features composite construction, with the continuous filament polyester sheath braided over a continuous nylon fiber core. Featuring a weight-balanced construction with the sheath and the core each representing half the total weight, KM III is torque-balanced to eliminate any spin during a rappel. This provides excellent handling and knot-holding characteristics, as well as rugged protection from abrasion and cutting. The polyester sheath provides added protection from ultraviolet light and chemicals harmful to nylon, while reducing the strength loss and weight gain that occurs when nylon absorbs water.

Rope is sold by the foot. Rope ends are included. No charge on custom cutting. See table below for maximum lengths.



KM III Specifications

The following specifications apply to all diameters of KM III:
Certification — UL Classified to NFPA standards.
Construction — Block creel, static kernmantle.
Fiber — Core is 100% nylon. Sheath is 100% high-tenacity polyester.
Sheath — 32-strand braided, with half the strands having a left (Z) twist and the other half having a right (S) twist for a balanced, torque-free rope with maximum abrasion resistance.
Rating  — NFPA General Use for 13 mm (1/2 in); NFPA Technical Use for 9.5 mm (3/8 in) and 11 mm (7/16 in).
Temperature — Melt point 460° F (238° C).

OptionItemSOLDWEIGHT / 100 FTDIAMETERCOLOR / STRIPENFPA RATING3 SIGMA MBSMAX LENGTHPrice

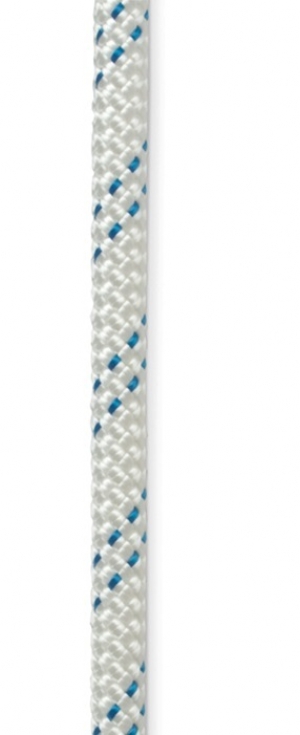

WHITE, 3/8 150 FEETK00120-150 BY THE FOOT 4.5 LB (2.0 KG) 9.5 MM (3/8 IN) WHITE / BLUE TECHNICAL USE 27.4 KN (6,160 LBF) 549 M (1,800 FT)$177
WHITE, 3/8 200 FEETK00120-200 BY THE FOOT 4.5 LB (2.0 KG) 9.5 MM (3/8 IN) WHITE / BLUE TECHNICAL USE 27.4 KN (6,160 LBF) 549 M (1,800 FT)$236
WHITE, 3/8 300 FEETK00120-300 BY THE FOOT 4.5 LB (2.0 KG) 9.5 MM (3/8 IN) WHITE / BLUE TECHNICAL USE 27.4 KN (6,160 LBF) 549 M (1,800 FT)$354
WHITE, 3/8 CUSTOM LENGTHK00120 BY THE FOOT 4.5 LB (2.0 KG) 9.5 MM (3/8 IN) WHITE / BLUE TECHNICAL USE 27.4 KN (6,160 LBF) 549 M (1,800 FT)$1.18

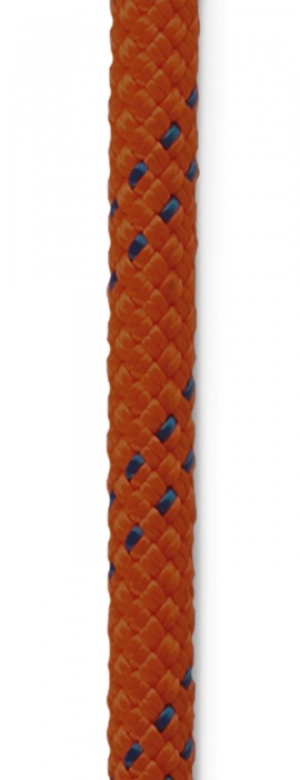

ORANGE, 3/8 150 FEETK05120-150 BY THE FOOT 4.5 LB (2.0 KG) 9.5 MM (3/8 IN) ORANGE / BLUE TECHNICAL USE 27.4 KN (6,160 LBF) 549 M (1,800 FT)$193.50
ORANGE, 3/8 200 FEETK05120-200 BY THE FOOT 4.5 LB (2.0 KG) 9.5 MM (3/8 IN) ORANGE / BLUE TECHNICAL USE 27.4 KN (6,160 LBF) 549 M (1,800 FT)$258
ORANGE, 3/8 300 FEETK05120-300 BY THE FOOT 4.5 LB (2.0 KG) 9.5 MM (3/8 IN) ORANGE / BLUE TECHNICAL USE 27.4 KN (6,160 LBF) 549 M (1,800 FT)$387
ORANGE, 3/8 CUSTOM LENGTHK05120 BY THE FOOT 4.5 LB (2.0 KG) 9.5 MM (3/8 IN) ORANGE / BLUE TECHNICAL USE 27.4 KN (6,160 LBF) 549 M (1,800 FT)$1.29
WHITE, 7/16 150 FEETK00140-150 BY THE FOOT 6.0 LB (2.7 KG) 11 MM (7/16 IN) WHITE / BLUE TECHNICAL USE 33.3 KN (7,486 LBF) 549 M (1,800 FT)$198
WHITE, 7/16 200 FEETK00140-200 BY THE FOOT 6.0 LB (2.7 KG) 11 MM (7/16 IN) WHITE / BLUE TECHNICAL USE 33.3 KN (7,486 LBF) 549 M (1,800 FT)$264
WHITE, 7/16 300 FEETK00140-300 BY THE FOOT 6.0 LB (2.7 KG) 11 MM (7/16 IN) WHITE / BLUE TECHNICAL USE 33.3 KN (7,486 LBF) 549 M (1,800 FT)$396
WHITE, 7/16 CUSTOM LENGTHK00140 BY THE FOOT 6.0 LB (2.7 KG) 11 MM (7/16 IN) WHITE / BLUE TECHNICAL USE 33.3 KN (7,486 LBF) 549 M (1,800 FT)$1.32
ORANGE, 7/16 150 FEETK05140-150 BY THE FOOT 6.0 LB (2.7 KG) 11 MM (7/16 IN) ORANGE / BLUE TECHNICAL USE 33.3 KN (7,486 LBF) 549 M (1,800 FT)$210
ORANGE, 7/16 200 FEETK05140-200 BY THE FOOT 6.0 LB (2.7 KG) 11 MM (7/16 IN) ORANGE / BLUE TECHNICAL USE 33.3 KN (7,486 LBF) 549 M (1,800 FT)$280
ORANGE, 7/16 300 FEETK05140-300 BY THE FOOT 6.0 LB (2.7 KG) 11 MM (7/16 IN) ORANGE / BLUE TECHNICAL USE 33.3 KN (7,486 LBF) 549 M (1,800 FT)$420
ORANGE, 7/16 CUSTOM LENGTHK05140 BY THE FOOT 6.0 LB (2.7 KG) 11 MM (7/16 IN) ORANGE / BLUE TECHNICAL USE 33.3 KN (7,486 LBF) 549 M (1,800 FT)$1.40
WHITE, 1/2 150 FEETK00160-150 BY THE FOOT 8.0 LB (3.6 KG) 13 MM (1/2 IN) WHITE / BLUE GENERAL USE 43.3 KN (9,734 LBF) 549 M (1,800 FT)$226.50
WHITE, 1/2 200 FEETK00160-200 BY THE FOOT 8.0 LB (3.6 KG) 13 MM (1/2 IN) WHITE / BLUE GENERAL USE 43.3 KN (9,734 LBF) 549 M (1,800 FT)$302
WHITE, 1/2 300 FEETK00160-300 BY THE FOOT 8.0 LB (3.6 KG) 13 MM (1/2 IN) WHITE / BLUE GENERAL USE 43.3 KN (9,734 LBF) 549 M (1,800 FT)$453
WHITE, 1/2 CUSTOM LENGTHK00160 BY THE FOOT 8.0 LB (3.6 KG) 13 MM (1/2 IN) WHITE / BLUE GENERAL USE 43.3 KN (9,734 LBF) 549 M (1,800 FT)$1.51

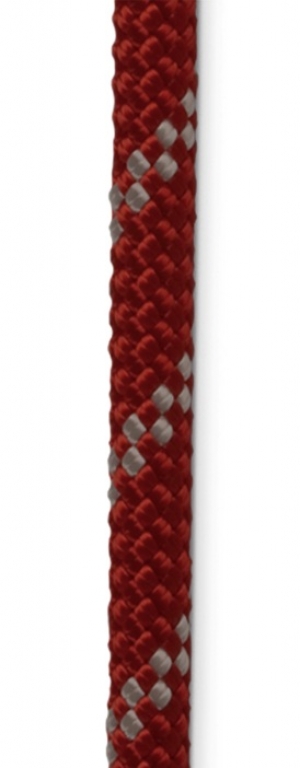

RED, 1/2 150 FEETK01160-150 BY THE FOOT 8.0 LB (3.6 KG) 13 MM (1/2 IN) RED / WHITE GENERAL USE 43.3 KN (9,734 LBF) 549 M (1,800 FT)$259.50
RED, 1/2 200 FEETK01160-200 BY THE FOOT 8.0 LB (3.6 KG) 13 MM (1/2 IN) RED / WHITE GENERAL USE 43.3 KN (9,734 LBF) 549 M (1,800 FT)$346
RED, 1/2 300 FEETK01160-300 BY THE FOOT 8.0 LB (3.6 KG) 13 MM (1/2 IN) RED / WHITE GENERAL USE 43.3 KN (9,734 LBF) 549 M (1,800 FT)$519
RED, 1/2 CUSTOM LENGTHK01160 BY THE FOOT 8.0 LB (3.6 KG) 13 MM (1/2 IN) RED / WHITE GENERAL USE 43.3 KN (9,734 LBF) 549 M (1,800 FT)$1.73
GREEN, 1/2 150 FEETK02160-150 BY THE FOOT 8.0 LB (3.6 KG) 13 MM (1/2 IN) SAFETY GREEN / BLUE GENERAL USE 43.3 KN (9,734 LBF) 549 M (1,800 FT)$259.50
GREEN, 1/2 200 FEETK02160-200 BY THE FOOT 8.0 LB (3.6 KG) 13 MM (1/2 IN) SAFETY GREEN / BLUE GENERAL USE 43.3 KN (9,734 LBF) 549 M (1,800 FT)$346
GREEN, 1/2 300 FEETK02160-300 BY THE FOOT 8.0 LB (3.6 KG) 13 MM (1/2 IN) SAFETY GREEN / BLUE GENERAL USE 43.3 KN (9,734 LBF) 549 M (1,800 FT)$519
GREEN, 1/2 CUSTOM LENGTHK02160 BY THE FOOT 8.0 LB (3.6 KG) 13 MM (1/2 IN) SAFETY GREEN / BLUE GENERAL USE 43.3 KN (9,734 LBF) 549 M (1,800 FT)$1.73

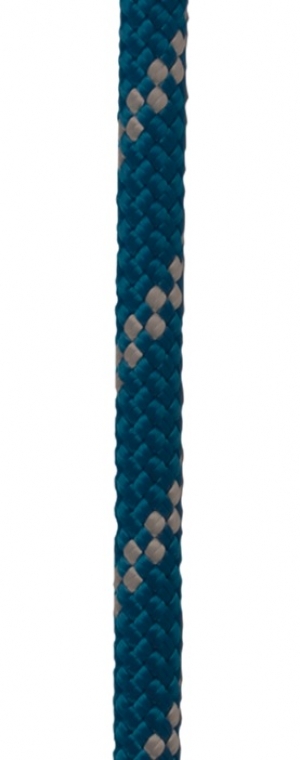

BLUE, 1/2 150 FEETK03160-150 BY THE FOOT 8.0 LB (3.6 KG) 13 MM (1/2 IN) BLUE / WHITE GENERAL USE 43.3 KN (9,734 LBF) 549 M (1,800 FT)$259.50
BLUE, 1/2 200 FEETK03160-200 BY THE FOOT 8.0 LB (3.6 KG) 13 MM (1/2 IN) BLUE / WHITE GENERAL USE 43.3 KN (9,734 LBF) 549 M (1,800 FT)$346
BLUE, 1/2 300 FEETK03160-300 BY THE FOOT 8.0 LB (3.6 KG) 13 MM (1/2 IN) BLUE / WHITE GENERAL USE 43.3 KN (9,734 LBF) 549 M (1,800 FT)$519
BLUE, 1/2 CUSTOM LENGTHK03160 BY THE FOOT 8.0 LB (3.6 KG) 13 MM (1/2 IN) BLUE / WHITE GENERAL USE 43.3 KN (9,734 LBF) 549 M (1,800 FT)$1.73
BLACK, 1/2 150 FEETK04160-150 BY THE FOOT 8.0 LB (3.6 KG) 13 MM (1/2 IN) BLACK GENERAL USE 43.3 KN (9,734 LBF) 549 M (1,800 FT)$259.50
BLACK, 1/2 200 FEETK04160-200 BY THE FOOT 8.0 LB (3.6 KG) 13 MM (1/2 IN) BLACK GENERAL USE 43.3 KN (9,734 LBF) 549 M (1,800 FT)$346
BLACK, 1/2 300 FEETK04160-300 BY THE FOOT 8.0 LB (3.6 KG) 13 MM (1/2 IN) BLACK GENERAL USE 43.3 KN (9,734 LBF) 549 M (1,800 FT)$519
BLACK, 1/2 CUSTOM LENGTHK04160 BY THE FOOT 8.0 LB (3.6 KG) 13 MM (1/2 IN) BLACK GENERAL USE 43.3 KN (9,734 LBF) 549 M (1,800 FT)$1.73
ORANGE, 1/2 150 FEETK05160-150 BY THE FOOT 8.0 LB (3.6 KG) 13 MM (1/2 IN) ORANGE / BLUE GENERAL USE 43.3 KN (9,734 LBF) 549 M (1,800 FT)$259.50
ORANGE, 1/2 200 FEETK05160-200 BY THE FOOT 8.0 LB (3.6 KG) 13 MM (1/2 IN) ORANGE / BLUE GENERAL USE 43.3 KN (9,734 LBF) 549 M (1,800 FT)$346
ORANGE, 1/2 300 FEETK05160-300 BY THE FOOT 8.0 LB (3.6 KG) 13 MM (1/2 IN) ORANGE / BLUE GENERAL USE 43.3 KN (9,734 LBF) 549 M (1,800 FT)$519
ORANGE, 1/2 CUSTOM LENGTHK05160 BY THE FOOT 8.0 LB (3.6 KG) 13 MM (1/2 IN) ORANGE / BLUE GENERAL USE 43.3 KN (9,734 LBF) 549 M (1,800 FT)$1.73
